    Self Propelled Work Platform With Tools , 6m Two Persons Vertical Mast Lift

    Ask Lasest Price
    Brand Name : SIVGE
    Model Number : GTWZ6-4006
    Certification : CE SGS
    Price : negotiation
    Payment Terms : D/P, T/T, L/C
    Supply Ability : 30 units per month
    Delivery Time : 7-50 work days
    • Product Details
    • Company Profile

    Self Propelled Work Platform With Tools , 6m Two Persons Vertical Mast Lift

    6m self propelled hydraulic aluminum Work Platform for two persons with tools
    Product Description

    Occasions suitable to use this machine:


    Places may in need of this kind of machine:

    Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.


    Using purpose:

    Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.


    Specification

    of 6m self propelled hydraulic aluminum Work Platform for two persons with tools


    BrandSIVGE
    Model-CodeGTWZ6-4006
    Max. Platform Height6m
    Max. Working Height (m)8m
    Loading Capacity (kg)480
    Number Of Person Allowed2 persons
    Platform Dimension (mm)1760×860
    Horizontal Extension (mm)800 (optional)
    Rated load for extension (kg)100(optional)
    Power SupplyDC24V&DC48V
    Motor

    For Lifting (kw): 2.2

    For traveling (kw): 3.0

    Traveling speed (km/h)

    Stored state: 2.5

    Lifted state: 0.8

    Min. swerve radius (m)4.0
    Stowed Dimension (mm)L×W×H: 2430×1150×1980
    Machine weight about(kg)2350

    • rated load for extenson: 100kg
    • Optional funtion: horizontal extension platform for 800mm at one side;

    Product standard features

    • Drivable at full height

    • One hand proportional joystick

    • AC inverter motor drive

    • Drive speed interlock

    • Tilt level sensor with audible alarm

    • Overload limit

    • Emergency stop buttons at both controls

    • Emergency lowering device in case of power supply failure

    • Battery charger indictor

    • Forklift pocket

    • Compact size with easy quick guardrail assemblage system

    • Low maintenance requirements will save you time and money.


    If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

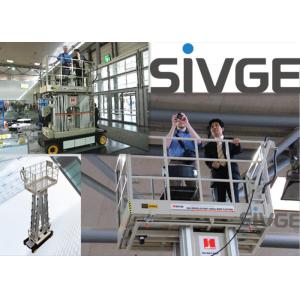

    Product photos


    Packing & Shipping

    LCL: plywood case with steel pallet at bottom

    FCL: steel pallet with anti-rust covers

    20GP container for 4 set

    Delivery time is usually 40 days according to order qty. and models.


    After-sale Service

    • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
    • To provide remote service support by phone and network freely.
