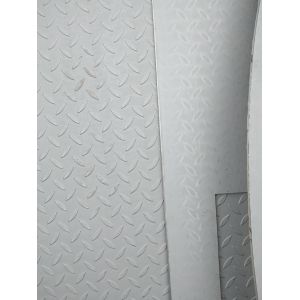

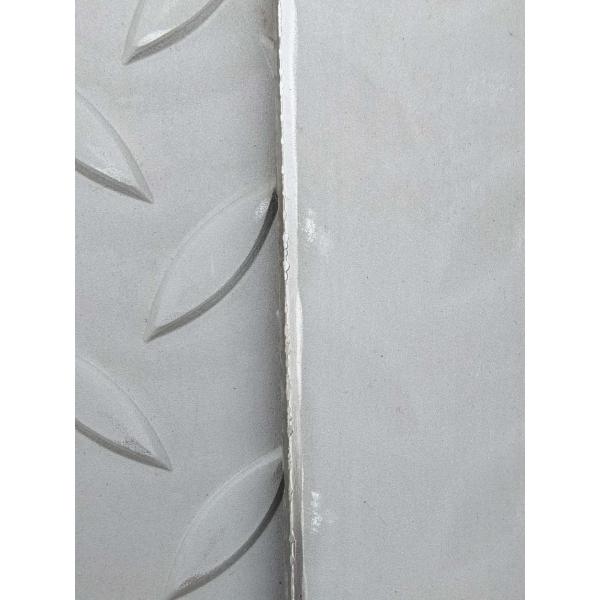

Stainless Steel Checkered Plate 304 Decorative Stainless Steel
Sheet 304 checkered plate 0.5-3mm
Quick Detail:
304 stainless steel sheet| name | 304 stainless steel sheet | brand | BAOSTEEL TISCO POSCO JISCO |
| size | 1000mm x 2000mm 1219mm x 2438mm or as required | surface | 2B BA NO.1 NO,4 HL mirror 8k, pvc coated |
| thickness | 0.6mm - 3.0mm | certificate | SGS BV |
High temperature resistance, corrosion resistance
can work under 1200 degree temperature for long time.
Description:
Stainless Steel Checkered Plate 304 Decorative Stainless Steel
Sheet 304 checkered plate 0.5-3mm
we are the agent of TISCO, we has located in wuxi city for a long
time. we are special in stainless steel sheet, and we keeps about
15000 ton products in our warehouse, we have a process factory in
our city. we can make some process like surface treatment . bend ,
cut and so on.
About our products:
1. Material: 200 series 300 series 400 series 904L duplex stainless
steel.etc
2. Size: 0.3-3.0mm thickness 1000x2000mm 1219x2438mm or as required
3. Surface: 2B BA NO.4 Mirror 8K pvc coated. Other special surface
treatment is available. We have a stainless steel process center in
our city.
4. Brand: TISCO LISCO JISCO BAOSTEEL ZPSS.etc
5. Chemical Compostion: Ni 8% Cr 18%
6. packing: standard export seaworthy packing or as customer
required.
Specification of 304 stainless steel checkered plate
1. Material: 200series&300series&400series
2. Standard: JIS, AISI, ASTM, GB, DIN, EN
3. Thickness: 0.3-100mm or as customer’s requirement
4. Width: 1500-2200mm or as customer’s requirement
5. Length: 1000-6000mm or as customer’s requirement
6. Surface: 2B, BA, No.1, etc
7. Technical processing: Hot Rolled/Cold Rolled
8. Decoration:
Mirror, No.4, HL NSP, Bead Blast, Vibration,
HL Gold, Mirror Gold, Vibration Gold NSP,
No4 Copper NSP, Mirror Copper, Bead Copper,
HL Brass, Mirror Brass, Bead Brass,
HL Black, Mirror Black, Bead Black NSP,
HL Bronz, Mirror Bronze, Vibration Bronze,
Mirror Etched, HL Etched Copper, Mirror Black Etched, Mirror Etched
Gold.
Specifications:
Size: 1000x2000mm 1219x2438mm other we have coils in stock, we can
cut it for any length as customer required.
Width of our mile edge coil: 1020-1050mm 1220-1265mm
thickness: 0.3-3.0mm
Mechanical property of 304 stainless steel checkered plate
| Tensile Strength | σb (MPa)≥520 |
| Offset Yield Strength | σ0.2 (MPa)≥205 |
| Elongation | δ5 (%)≥40 |
| Reduction of Area | ψ (%)≥60 |
| Hardness | ≤187HB;≤90HRB;≤200HV |
| Density(20℃,g/cm3) | 7.93 |
| Melting Point(℃) | 1398~1454 |
| Specific Heat Capacity(0~100℃,KJ·kg-1K-1) | 0.5 |
| Thermal Conductivity(W·m-1·K-1) | (100℃)16.3,(500℃)21.5 |
| Coefficient of Linear Expansion(10-6·K-1) | (0~100℃)17.2,(0~500℃)18.4 |
| Electrical Resistivity(20℃,10-6Ω·m) | 0.73 |
| Longitudinal Modulus of Elasticity(20℃,KN/mm2) | 193 |
Chemical composition of 304 stainless steel checkered plate
| 304 | C | Mn | P | S | Si | Cr | Ni |
| % | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.5–20.0 | 8.0-11 |
Maintenance of 304 stainless steel checkered plate
(1) Regular cleaning and maintenance
(2) Pay attention to prevent the occurrence of the phenomenon of
surface scratches
(3) Use soap, weak detergent or warm water to remove surface dust,
dirt
(4) In addition to the surface of the binder with alcohol or an
organic solvent
(5) Use neutral detergent or ammonia solution in addition to
surface oil
(6) With 10% nitric acid or abrasive detergent in addition to the
surface of the embroider caused by the dirt.
packing details
packing:standard export seaworthy packing or as required.
bundled wooden box or be required; The inner size of container is
below: 20 ft GP:5.8m(length)x 2.13m(width)x 2.18m(high) about 24-26
CBM 40 ft GP:11.8m(length)x 2.13m(width)x 2.72m(high)about 68 CBM
Company Profile
Our company supplies kinds of stainless steel strip , high quality
and resonable price. We stick to the principle of quality first.
Our advanced manufacturing techniques ensurea we provide the
highest quality products, products, efficiently that are cost and
delivered on time.
FAQ
Q: Are you Manufacturer or Trading company?
A: We are both manufacturer and trading company in Ningo city,
Zhejiang Province, China.we have professional processing mill with
10 years' experience.
Q: What's your main products?
A: Our main products is including Stainless Steel Strip grade in
201,301,304,304L,316L, 430, 410L.
Q:Do you provide samples ?
A3: Yes, we could offer the sample for free charge but the cost of
freight is by receiver, normally.
Why choose us?
1. With over 15 years' experience in Stainless Steel strip coil
manufacturing.
2. Competitive Price and Best Services.
3. Work with many famous brands,such as Tisco,Baosteel.
4. Strong production capacity.
5. Excellent exprience of after-sale service.
How to order
Please inform us the following information
1.Grade,Surface,Thickness,Size,Tolerance,Special request
2.Amount
3.Price Term
4.Leave your contact
If you are interested in our products, please feel free to contact
me any time! Welcome to hear from your inquiry!
