    Galvanize Spring Washer 38Si7 Black Oxide / Lock Flat Washers in Different Size

    Ask Lasest Price
    Brand Name : ZhongYue
    Certification : ISO9001:2015
    Price : Negociable
    Payment Terms : T/T, 30% in advance
    Supply Ability : 800 Tons Per Month
    Delivery Time : 15-30 days after formal order
    • Product Details
    • Company Profile

    Galvanize Spring Washer 38Si7 Black Oxide / Lock Flat Washers in Different Size

    Galvanize Spring Washer 38Si7 Black Oxide Lock Flat Washers in Different Size


    SUYU-Lock wedge lock washers have been rigorously tested and approved by independent institutes as well as certification authorities. SUYU-Lock wedge lock washers are used in numerous industries such as: energy, transportation, offshore, mining and quarrying, construction and bridge building, manufacturing and processing, ship building, forestry and agriculture, heavy vehicles, and military. Our washers are approved by several industry standards and specified by numerous international companies. Over the operational life cycle, SUYU-Lock wedge lock washers give increased operational reliability and lower maintenance costs while significantly reducing the risks of production stops, accidents and warranty claims.



    Split lock washers provide greater bolt tensioning for tighter assemblies and provide protection against loosening resulting from vibration. Lock washers can be used with a standard washer to provide uniform bearing surface. These washers are intended for general use.

    Specifications

    Type

    Demension

    Weight (Kg/Mpcs)

    Spring wsaherFe6(UIC864-3)

    diam: 25

    90

    Spring washer AREA67

    7/8

    90.55

    Spring washer AREA67

    1

    152.33

    Spring washer AREA67

    1-1/8

    187.65

    Plain pattern washer

    7/8

    70.46

    Plain pattern washer

    1

    78.03

    Plain pattern washer

    1-1/8

    85.32

    Flat washer ULS6

    47/23/4

    41

    Flat washer ULS6

    50/25/4

    42

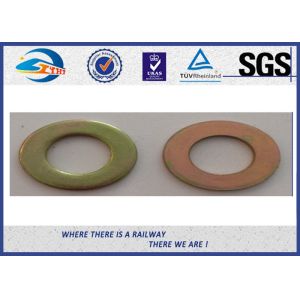

    Sample show


    Washer standard
    DIN 934,985, 439, A563 DH,10S 2H,
    Gr 4, Gr7, B8, B8M, A2,A4,
    SS316L, B8, B8M

    Washer, Materials
    Carbon steel, stainless steel, F436M,
    SS304, SS316L,
    SPRING,TAPER, PLATE,SS316
    4.6. CARBON STEEL,ASTM
    a36, 8.8 ,b7, a307, a325, a490,
    WASHERS Standard: DIN6798, DIN6797
    Diameter: (mm)3.2-15

    Length:- M10-1.5, M10-1.25, M10-1.0
    Product Name: WASHERS
    Brand Name: CANCO
    Standard Model DIN ANSI JIS ASTM
    FINISH :Black,Zinc Plated ,HOT GALVANIZED,Cr Cu or Ni Plated
    Material:- Carbon Steel,Brass, Stainless steel,Spring steel, Alloy steel


    Application

    1. Bolt
    2. Screw Spike



    Dimensions

    Bolt SizeABCWeight in Pounds Per 100 Pieces
    Inside Diameter MaxOutside Diameter MaxThickness
    Min
    1/40.2600.487.0620.24
    5/160.3220.5830.0780.40
    3/80.3850.6800.0940.60
    7/160.4500.7760.1091.0
    1/20.5120.8690.1251.3
    5/80.6411.0730.1562.4
    3/40.7661.2650.1884.3
    7/80.8941.4590.2196.0
    11.0241.6560.2508.8
    1-1/81.1531.8470.28112
    1-1/41.2802.0360.31216
    1-3/81.4082.2190.34421.9
    1-1/21.5342.4190.37528.2
    1-3/41.7892.6790.38930.35
    22.0392.9360.42232.50
    2-1/42.2933.2210.44039
    2-1/22.5433.4710.44045
    2-3/42.7933.8240.45850
    33.0434.0740.45856



    Package





    Quotation necessity ( the more, the better )

    1. Drawing with full size
    2. Material and Grade
    3. Surface treatment
    4. Order quantity

    Sale Rang

    1. Rail fastening system
    2. Dog spike;
    3. Screw spike
    4. Bolt and nut
    5. Elastic clamp
    6. Rail anchor
    7. Rail shoulder
    8. Fish plate
    9. Tie plate
    10. Plastic
    11. Rubber parts
    12. Brake Block
    13. Steel rail
    14. New wooden sleeper
