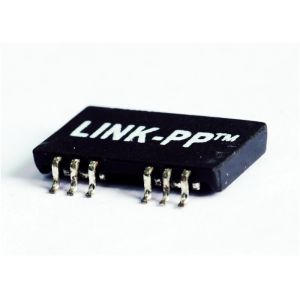

Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB

    Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers

    Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers
    • Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers
    • Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers
    • Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers
    • Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers
    • Buy cheap Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB from wholesalers

    Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LP41604ANL
    Certification : UL,RoHS,Reach,ISO
    Price : $0.06-$3.2
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 3KK/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB

    Low Profile SMT Ethernet Transformer 1.98mm LP41604ANL 10 / 100Base-T Lan PCB
    Spec
    Part No
    Manufacturer
    Description
    LP41604ANL
    LP41604ANL
    LINK-PP
    Magnetic Low Profile Ethernet Transformer SMT 10 /100Base-T For Lan PCB
    Series
    Transformer Type
    Applications
    Turn Radio
    Transformer
    Isolation and Data Interface
    10/100 Base-T
    1:1
    Mounting Type
    Size / Dimension
    Height - Seated (Max)
    Unit Price
    (USD)
    Surface Mount
    12.70mm L x 7.11mm
    1.98mm
    Depends on quantity
    ELECTRICAL SPECFICATIONS @25℃
    1.Turn Ratio(± 3%):
    TX=1CT:1CT RX=1CT:1CT
    2.Inductance OCL:
    350uH MIN @ 100KHz 0.1V
    3.Insertion Loss:
    -1.1dB MAX @ 1-100MHz
    4.Return Loss:
    -16dB MIN @ 1-30MHz
    -12dB MIN @ 30-60MHz
    -10dB MIN @ 60-100MHz
    5.Cross talk:
    -40dB MIN @ 1-30MHz
    -35dB MIN @ 30-60MHz
    -30dB MIN @ 60-100MHz
    6.Common Mode Rejection:
    -30dB MIN @ 1-50MHz
    -20dB MIN @ 50-150MHz
    7.Hipot Test:1500Vrms
    8.Operating Temperature Range: -40℃ TO +85℃.
