| Brand Name : | HUATEC |
| Model Number : | DHB-3000 |
| Payment Terms : | T/T, Paypal, Western Union |
| Delivery Time : | 1-4days |
| Certification : | ISO, CE, GOST |
| Supply Ability : | 500pcs per month |
650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester
Testing range:( 8~650)HBW | ||
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf),
1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf),
9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf) | ||
Accuracy of Displayed Hardness Value | ||
Hardness Range(HBW) | ||
≤ 125 | ||
125<HBW≤225 | ||
> 225 | ||
Max, Height of the speciment: 225mm | ||
Max Distance from the indenter center to the instrument panel:
135mm | ||
Magnification of the microscope: 20X | ||
Min Reading Grade of the Drum wheel of the microscope: 0.005mm | ||
Power supply and Voltage: AC220V/50-60Hz | ||
Main Accessories | ||
Tables:Large, Small and V-shaped each | ||
Hard Alloyed Steel Ball Indenters: ¢2.5mm, ¢5mm, and ¢10mm each. | ||
One Microscope: 20X | ||

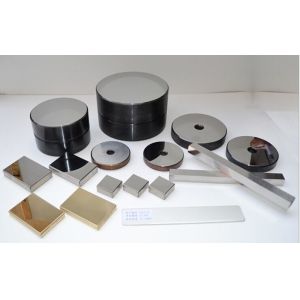

Two Standard Hardness Blocks | ||

|
