    A-Scan Snapshot Ultrasonic Plastic Film Wall Thickness Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG-4500 series
    Certification : ISO, CE, GOST
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1-4days
    • Product Details
    • Company Profile

    A-Scan Snapshot Ultrasonic Plastic Film Wall Thickness Gauge

    A-Scan Snapshot TG4500 Series Ultrasonic Thickness Gauge

    Features:
    Color 320x240 Pixels Display
    A-Scan Snapshot
    Echo-Echo Mode(Thru Paint & Coatings)
    Stores 100,000 Readings
    Gain: Low, Medium or High for varying test conditions

    Specifications

    Feature

    TG-4500

    TG-4500D

    TG-4500DL

    Data Logger Option

    Color Display

    A-Scan Snapshot

    Gain: Low, Medium, High

    Min/Max Capture

    DIFF/RR%

    Thru-paint

    X

    Data Logger

    X

    X

    Data View Software

    X

    X


    Instrument Specifications

    Display Type

    2.4" color OLED, 320X240 pixels, contrast 10,000:1

    Operating Principle

    Pulse echo with dual element transducers

    Measuring Range

    0.60mmto 508mm(0.025" to 20.00"), depending on material, probe and surface condition

    MeasuringResolution

    Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

    Units

    Inch or Millimeter

    Gain

    Low, Medium or High for varying test conditions

    Display Mode

    Normal, Minimum / Maximum capture, DIFF/RR%

    V-Path Correction

    Automatic

    Update Rate

    Selectable 4Hz, 8Hz, 16Hz

    MaterialVelocity Range

    500 to 9999m/s (0.0197 to 0.3937in/us)

    Languages

    Selectable Chinese, English, Japanese

    Alarm Settings

    Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

    Power Requirements

    2 AA size batteries

    Operating Time

    Approximately 40 hours

    Instrument Shut-off

    Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

    Operating Temperature

    -10°Cto +50°C (+10°F to +120°F)

    Size

    153mmX 76mm X 37mm(H X W X D)

    Weight

    280gincluding batteries


    Data Logger Option Features

    Capacity

    400 files, 100,000 readings

    File Structure

    Grid file

    Rows X Columns

    21 X 12

    CommunicationPort

    USB 2.0 (Full Speed ) port

    Software

    Data View PC software

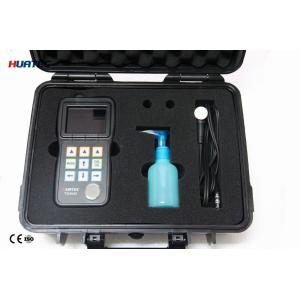

    Standard Configurations

    Thickness Gauge

    1

    Probe

    1

    Alkaline Battery

    2

    Couplant

    1

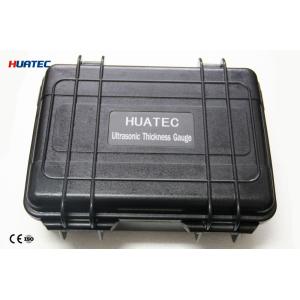

    Carrying Case

    1

    Operation Manual

    1

    USB Cable

    1(Only TG-4500DL)

    Software CD

    1(Only TG-4500DL)


    Optional Configurations

    High-temperature Probe

    Cast Iron Probe

    Small Probe

    Mini Probe

    Probe Cable

    Stepped Calibration Block

    Rubber Sheath

    Storage Option(Only TG-4500DL)

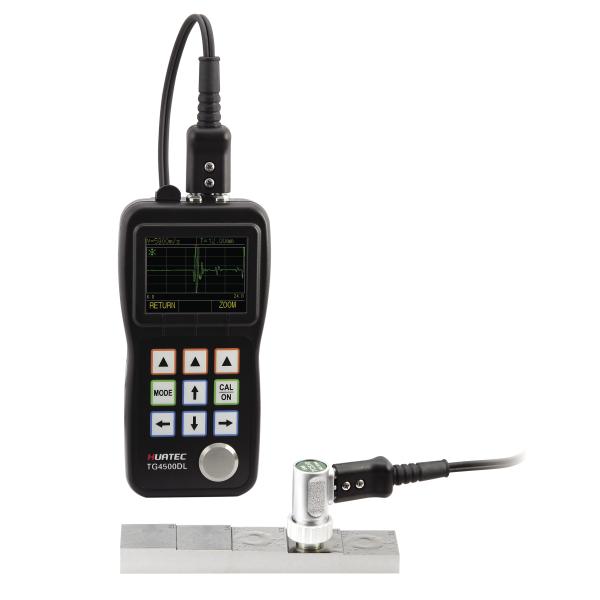

    Quality A-Scan Snapshot Ultrasonic Plastic Film Wall Thickness Gauge for sale
