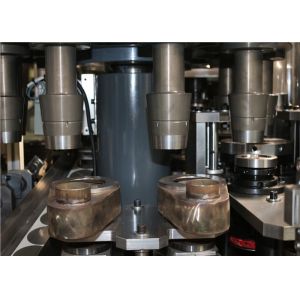

Fully Automatic Ultrasonic High Speed Paper Cup Machine 160pcs/Min
Description:
SMD-90 is a Paper Cup machine,which is designed By HAINING CHENGDA
MACHINERY CO.,LTD,It can produce both single and Double PE coated
paper Cups(hot drink and cold drink ). As technology development,
it will take place of the formally machines in market day by
day.Higher autmation,higher
stable with international famous brand electric appliance.
Specifications:
MODEL | SMD-90 |
SPEED | 100-160 CUPS/MIN |
CUP SIZE RANGE | Top Diameter: 60MM(Min)- 115 MM(Max) Bottom Diameter: 40MM(Min)-85MM(Max) Height: 50MM(Min)-180MM(Max) |
MATERIAL | 135-450GRAM |
CONFIGURATION | ULTRASONIC&HOT AIR |
OUTPUT | 380V/220V,60HZ |
AIR COMPRESSOR | 0.5 M³/Min |
NET WEIGHT | 3.0 TONS |
MACHINE SIZE | 2500 ×1800 ×1700 MM |
COUNTER SIZE | 900 ×900 ×1760 MM |
Applications:
Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc
Eletricity Box
Distribution Box has 1 pcs of Touch screen, 4 pcs of temperature
Control device, 2 pcs of indicator light, 6 pcs of button, 1 pcs of
rotary Knob , 1 pcs of key, 1 pcs of Electricity Main switch in
lateral . Button is : Stop, Main machine stop,Main machine start,
Heat start, Heat stop, Alarm stop,Alarm Reset. There is 3 buttons
in control handle, the black is inching button, the red is machine
stop, the green is Main machine start. in machinery, there is 3
button, 2 pcs of them in front of machine, they control the Bottom
paper’s up and down. In back of machine,there is scram button,Now
we introduce the every button and its function.
Maintaince Notice
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use
chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause
fire or shock damage.
5. Instrument after electrify please don't touch input and output
terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock
hazard.Because of power, has its internal capacitance charging, can
keep certain voltage.
After Service
1. warranty:3 years
2.the guide booklet will be sent with machine to guide the
installation process works,adjust the whole
machine,production,avoide or solve the problem which the buyer will
face.
3.we will adjust the machine well for one week before the
delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding
installation,ajustment for a period,the buyer incharge of the
salary,traffic fee,boarding and lodging,communication and Daily
salary.
5.we supply the free training of buyer,the training won't stop
until the buyer control the whole leson!the cost of air
ticket,boarding and lodging should provided by buyer.
6.we supply the consumable spare parts for free for 3 year use.
