Air Respirator Breathing Apparatus for Fire Fighting
Oxygen Respirator Description
Positive pressure fire-fighting air respirator is a new model of
self supporting open respirator, which is widely used in
fire-fighting ,chemistry industry,fired boat,petroleum
industry,smelt,mine and transportation.
It is a high-performance respiratory positive device designed for
fireman and special trained person when trapper in the situation
with smoke,pollution,hot vapor and/or hypoxygen, to perform the
extinguish, rescue and ambulance.
Oxygen Respirator Details
1.Air cylinder volume : 5L , 6L , 6.8L , 9L
2.working pressure : 300 bar
3.using time : 40__60 mins
4.Certificate : CCS ,EC
5.Easy to wear and adjustable
Oxygen Respirator Accessories
1 Back Care
2 Pressure Gage
3 Full Face Mask
4 Cylinder Valve
5 Air Supply Valve
6 Fast Interface
7 Pressure Reglator
8 Alarm Whistle
Oxygen Respirator Types
Oxygen Respirator Model | Working pressure | Volume | Air Deposit | Using Time | Alarm Pressure | Weight | Packing | Notes |
(MPa) | (L) | (L) | (min) | (MPa) | (kg) | (mm) |
RHZK5/30 | 30 | 5 | 1500 | 40-50 | 4 - 6 | ≤16 | 710×290×430 | Steel air cylinder |
RHZK6/30 | 30 | 6 | 1800 | 50-60 | 4 - 6 | ≤18 | 710×290×430 |
RHZK6.8/30 | 30 | 6.8 | 2040 | 50-60 | 4 - 6 | ≤12 | 710×290×430 | Carbon fibre air cylinder |
RHZK9/30 | 30 | 9 | 2700 | 80-90 | 4 - 6 | ≤16 | 710×290×430 |
RHZK6.8*2/30 | 30 | 6.8*2 | 2040*2 | 100-120 | 4 - 6 | ≤17 | / | Double-cylinder breathing apparatus |

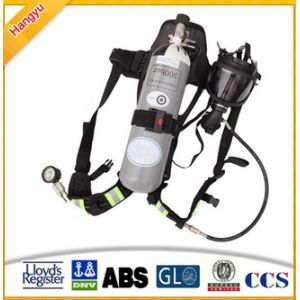

Oxygen Respirator Pictures
