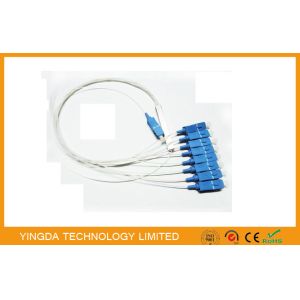

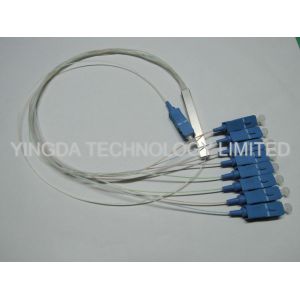

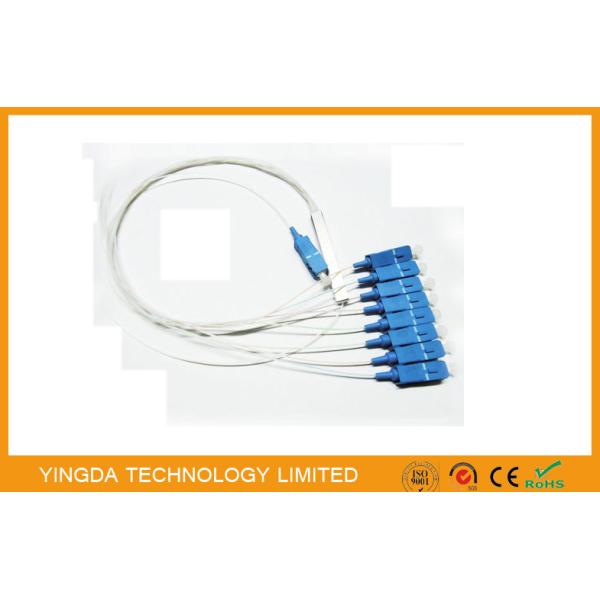

    1 x 8 Fiber Optic PLC Splitter

    Ask Lasest Price
    Brand Name : YINGDA
    Model Number : 1X8
    Certification : ISO SGS ROHS
    Price : 1.1USD-4.58USD
    Supply Ability : 10,000 pcs per month
    Delivery Time : 5-8days after payment
    • Product Details
    • Company Profile

    1 x 8 Fiber Optic PLC Splitter

    1 x 8 Fiber Optic PLC Splitter Blockless Mini Modue, Blockless Splitter


    PLC Splitter is Based on the Planar Waveguide Technology.

    It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability


    Features

    1. Low Insertion loss
    2. Low PDL
    3. Compact Design
    4. High Return Loss
    5. Good channel-to-channel uniformity
    6. Compact Design
    7. High Reliability and Stability
    8. Wide Operating Temperature
    9. Wide Operating Wavelength
    10. Excellent Environmental & Mechanical Stability

    Application

    • FTTx (FTTB, FTTH, FTTC) Systems
    • Passive Optical Networks (PON) Networks
    • CATV Links
    • Optical Signal Distribution
    • Local Area Networks (LAN)
    • Test Equipments
    • Qualified Under Telcordia GR-1221 and GR-1209

    Specification


    1×N PLC Splitter


    Parameter

    Unit

    Value

    Product Type


    1×2

    1×3

    1×4

    1×6

    1×8

    1×12

    1×16

    1×24

    1×32

    1×64

    1×128

    Operation Wavelength

    nm

    1260～1650

    Insertion Loss

    Typ.

    dB

    3.6

    6.0

    7.0

    9.2

    10.3

    12.2

    13.6

    15.8

    16.6

    20.1

    24.5

    Max.

    4.3

    6.2

    7.4

    9.5

    10.7

    12.5

    13.9

    16.0

    17.2

    21.5

    25.5

    Uniformity (Max.)

    dB

    0.5

    0.6

    0.8

    0.8

    0.8

    1.2

    1.4

    1.5

    1.5

    2.0

    2.6

    PDL(Max.)

    dB

    0.2

    0.3

    0.3

    0.3

    0.3

    0.3

    0.3

    0.3

    0.3

    0.5

    0.8

    TDL(Max.)

    dB

    0.5

    Return Loss

    dB

    ≥55/50

    Directivity

    dB

    ≥55


    2×N PLC Splitter


    Parameter

    Unit

    Value

    Product Type


    2×2

    2×4

    2×8

    2×16

    2×32

    2×64

    2×128

    Operation Wavelength

    nm

    1260～1650

    Insertion Loss

    Typ.

    dB

    4.2

    7.2

    10.6

    13.8

    17.0

    20.5

    24.8

    Max.

    4.5

    7.7

    11.0

    14.8

    17.9

    21.5

    25.8

    Uniformity (Max.)

    dB

    0.8

    1.0

    1.2

    1.5

    1.8

    2.5

    3.0

    PDL(Max.)

    dB

    0.2

    0.3

    0.3

    0.3

    0.3

    0.5

    1.0

    TDL(Max.)

    dB

    0.5

    Return Loss

    dB

    ≥55/50

    Directivity

    dB

    ≥55


    Note: All the data above does not include connectors.

    UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.


    Pack information


    Split ratio

    1x2

    1x4

    1x8

    1x16

    1x32

    1x64

    1x128

    Mini-Module

    Dimension

    (mm)

    60*7*4

    60*7*4

    60*7*4

    60*12*4

    80*20*6

    100*40*6

    N/A


    Environmental Conditions


    Operating Temperature

    ℃

    -40～+85

    Storage Temperature

    ℃

    -40～+85

    Operating Humidity

    %RH

    ≤93

    Storage Humidity

    %RH

    ≤93


    Ordering Information


    PLCS

    -

    -

    -

    -

    -

    -

    -


    Structure

    Fiber

    Type

    Package

    Input

    Output

    Length

    Connector

    Structure

    0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64

    Fiber Type

    1=G652D, 2=G657A1, 3=G657A2

    Package Dimension

    A1, A2,...A12, D, E, F, K, U, G, C, T, R, X

    Input Type

    B=250μm Bare Fiber ,L=900µm Loose tube,

    S=2.0mm, R=3.0mm, 0=Adapter

    Output Type

    B=250μm Bare Fiber ,

    L=900µm Loose tube,

    S=2.0mm,

    R=3.0mm,

    F=splitter, 0=Adapter

    Pigtail Length

    05=0.5m, 10=1.0m, 100=100m, 0=Adapter,

    15/10=1.5m input/1.0m output,

    X=Others

    Connector Type

    FU=FC/UPC, FA=FC/APC,

    SU=SC/UPC, SA=SC/APC,

    ST=ST/UPC,

    LU=LC/UPC, LA=LC/APC,
    MPO=MPO/UPC,

    MPA=MPO/APC,

    FU/FA=FC/UPC input / FC/APC output,

    00=None,

    X=Others
