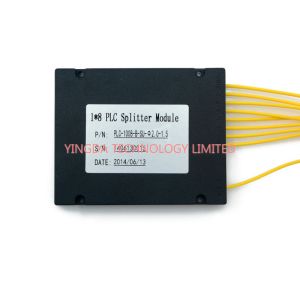

    GPON Single Mode Fiber Optic PLC Splitter 1x 8, PLC Splitter Module SC 1.5M

    Ask Lasest Price
    Brand Name : YINGDA
    Model Number : YD-PLC-MM-108-SC-15
    Certification : ISO SGS ROHS
    Price : 1.1USD-4.58USD
    Supply Ability : 10,000 pcs per month
    Delivery Time : 5-8days after payment
    • Product Details
    • Company Profile

    GPON Single Mode Fiber Optic PLC Splitter 1x 8, PLC Splitter Module SC 1.5M

    1x8 Fiber Optic PLC Splitter Module, Optical Splitter Module SC 1.5M


    Fiber PLC splitter Description


    Fiber optical plc splitter modules is a type of optical power management device that is fabricated

    using silica optical waveguide technology. It features small size, high reliability, wide operating

    wavelength range and good channel-to-channel uniformity, and is widely used in PON networks

    to realize optical signal power splitting.


    YINGDA provides whole series of 1xN and 2xN splitter products that are pre-terminated for specific

    applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.


    fiber spelitter Modem Application

    1. FTTX Systems
    2. PON Networks
    3. CATV Links
    4. Optical Signal Distribution

    splitter plc Feature

    • Low Insertion loss
    • Low PDL
    • Compact Design
    • Good channel-to-channel uniformity
    • Wide Operating Wavelength:From 1260nm to 1650nm
    • Wide Operating Temperature: From -40°C to 85°C
    • High Reliability and Stability

    fiber splitter Compliance

    1. Telcordia GR-1209-CORE
    2. Telcordia GR-1221-CORE
    3. RoHS

    Black ABS box plc splitter Specification:

    Type

    1×2

    1×4

    1×8

    1×16

    1×32

    1×64

    Operating Wavelength

    (nm)

    1260~1650

    Fiber type

    G657A or as customers’ request

    Insertion Loss(dB)

    ( S/P)

    4.0/3.8

    7.3/7.0

    10.5/10.2

    13.7/13.5

    16.9/16.5

    21.0/20.5

    Return Loss(dB)

    (S/P)

    50/55

    50/55

    50/55

    50/55

    50/55

    50/55

    Polarization Dependent

    Loss (dB)

    0.2

    0.2

    0.3

    0.3

    0.3

    0.4

    Directivity (dB)

    55

    55

    55

    55

    55

    55

    Wavelength Dependent

    Loss (dB)

    0.3

    0.3

    0.3

    0.5

    0.5

    0.5

    Temperature Stability

    (-40~85 °C)(dB)

    0.5

    0.5

    0.5

    0.5

    0.5

    0.5

    Operating

    Temperature(°C)

    -40~85

    Storage

    Temperature(°C)

    -40~85

    Square Tube (mm)

    40×4×4

    40×4×4

    40×4×4

    50×4×4

    50×7×4

    60×12×4

    Box (mm)

    100×80×10

    100×80×10

    100×80×10

    120×80×18

    140×115×18

    140×115×18

    Flat Tube (mm)

    60×7×4

    60×7×4

    60×7×4

    60×12×4

    80×20×6

    N/A
