Purity ＞ 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

Name: Purity 996 0005mm Thickness Pure Nickel Foil Width 02mm Nickel Coil
Brand: TANKII
Price: 1 USD

Ask Lasest Price
Brand Name :	TANKII
Model Number :	Pure Ni
Certification :	ISO,ROHS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1,000/Month

Add to Cart

Product Details
Company Profile

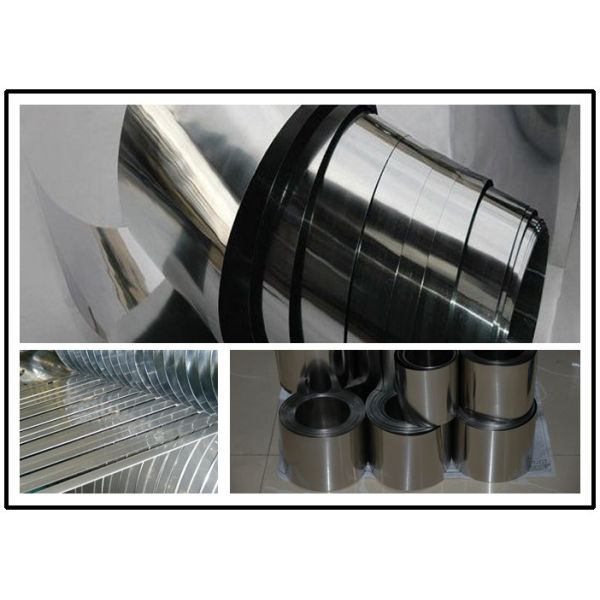

Purity ＞ 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

Purity ＞ 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

Product Description

Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.

Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.

1. pure nickel foil for sale
2. Purity: more than 99.5%
3. Thickness: 0.005-2mm
4. Standard: ASTM B162
5. MOQ: 5 kilogram

Specification of Pure Nickel Strip:

Strip Size

Thickness – 0.005mm above, Width- 0.2mm above

Chemical Composition of Pure Nickel Strip:

Nickel	99.6%
Copper	0.25%
Iron	0.40%
Manganese	0.35%
Carbon	0.15%
Silicon	0.35%
Sulfur	0.01%

Physical properties of Pure Nickel Strip:

Density, g/cm3	8.89
Melting Range, °C	1435-1446
Specific Heat, J/kg•°C	456
Curie Temperature, °C	360

Nickel Strip Chemical requirements

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Strip Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080

Properties of Pure Nickel Strip:

Higher electrical conductance
Raised Curie Temperature
Superior Magnetostrictive Properties
Excellent thermal conductivity

Applications of Nickel 200 Strip:

Manufacturing artificial synthetic fibers.
Chemical Treatment and Preservation.
Aerospace Industry.
Cathode tap
Cell connector
