    dry and wet shotcrete machine with accessories

    Ask Lasest Price
    Brand Name : China Coal
    Price : 0-10USD
    Delivery Time : 7 days
    Payment Terms : T/T,Western Union,Paypal
    Supply Ability : 100000sets/month
    • Product Details
    • Company Profile

    dry and wet shotcrete machine with accessories

    Specifications chinacoal05

    1)Explosion-proofing motor
    2)simple structured;
    3)high-effective


    Product Introduction

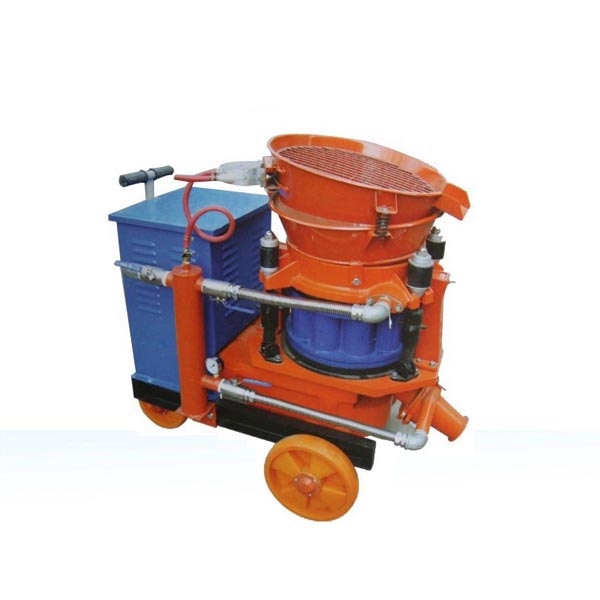

    Dry and wet Shotcrete machine with accessories

    cement guniting machine


    1.shotcrete machine widely used in coal mine roadway and high marshy mine,


    construction,traffic tunnel and sprayed concrete construction work.


    2.There are wet shotcrete machine, dry shotcrete machine, explosion proof shotcrete machine,


    and spare parts.


    Main Parameter


    Item

    ZMPZ-5

    Output

    5m3/h

    Max. convey distance

    Horizontal:200m Vertical: 20m

    Suitable Mix Ratio (Cement/Sand)

    1:3-5

    Water/cement ratio of concrete

    ≤0.4

    Max. Aggregate. Size

    20mm

    Hose inner size

    51mm

    Operating air pressure

    0.4~0.6MPa

    Air consumption

    7-8 m3/min

    Rotor diameter

    438mm

    Motor power

    Y132m-6-5.5KW

    Voltages

    380v as your requirements

    Overall dimension(mm)

    1520x820x1280

    Whole weight

    600kgs

    wheel

    Nylon wheel or Rubber wheel


    Item

    HSP-5

    Output

    5 m³/H

    Max. Convey dist

    Horizontal:30m Vertical: 20m

    Concrete proportion

    1:4-5C/A

    Water cement ratio

    ≤0.4

    Hose inner size

    Φ51m

    Max. Aggregate size

    15mm

    Operating air pressure

    0.3-0.6MPa

    Air consumption

    10-15m³/min

    Spring rate level

    ≤10%

    liquid accelerator metering pump

    pneumatic

    liquid accelerator add ratio

    0.3-0.7%

    main Electric motor power

    Y132m-6-5.5KW

    Voltages

    380v as your requirement

    Overall dimension(mm)

    1520X820X1280

    Whole weight

    700kgs

    Wheel

    Nylon wheel or Rubber wheel
