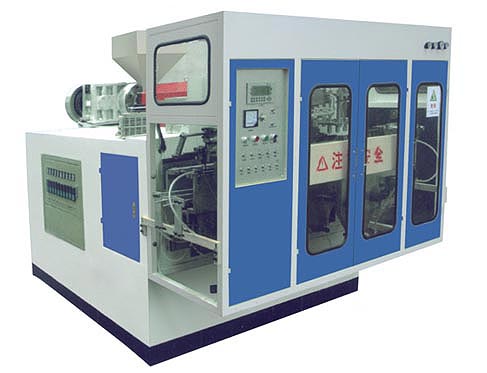

Photo of Automatic plastic blow molding machine PM3000B
Introduction
The machine has so many applications, it is suitable for large
scale productions of milk bottles, drinking-water bottles, edible
oil bottles, hot-filling bottles, medical containers, containers
used for cosmetics, spices, pesticides, lubricants and computer
suppliers, it is also applicable for making small plastic toys.
Technical parameters
| Max product vessel | 2.5L |
| Production capacity (Dry cycle) | 6.8PC/L |
| Screw diameter | 55mm |
| Power of the screw motor | 11KW |
| Plasticizing ability | 35KG/h |
| Max clamping force | 20KN |
| Max die plate size | 350*480mm |
| Qty. of die-head | 1-4 |
| Overall dimension | 2.2*1.9*1.7M |
| Weight | 2.5T |
