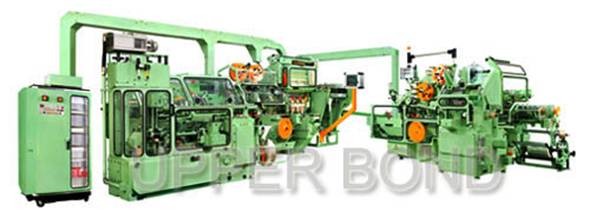

GDX2-CH Cigarette Packing Line For Hard pack
GDX2-CH is a high-speed model, capable of producing 400 hinge-lid
packets per minute. It was developed on the basis of X2
SC/4350/PACK-OW, which technology was introduced through the
Technology Transfer Agreement between G.D. Italy, and China
National Tobacco Corp. As a domestic product, GD2-ch consists of an
YB15 Tray Feeder, an YB45 Hinge-lid Packer, an YB55A Cellophaner,
an YB65A Cartoner and an YB95A Over wrapper.
Features
The entire working process, from cigarettes feeding to carton
overwrapping, is completed automatically without any manual
contact.
The settings of machine operation, quality control, shift
reporting, enhanced stoppage analysis, machine status, diagnostics
and system calibration are achieved entirely digitally by the brand
new MICRO-II system with integrated touch screens.
GDX2-CH won the second prize at the Technology and Improvement
Competition by State Tobacco Monopoly Bureau in 2000
Technical specification
Production Capacity: 400 packets/min (40cartons/min)
Cigarette Specification:
1. Diameter: φ7.8mm
2. Length: 84mm
Cigarette Collation 7-6-7
Packet Dimension: 86mm × 54.5mm × 22.5mm
Stamp Specification:
1. Width: 19mm~23mm
2. Length: 42mm~50mm
Carton Dimension: 274mm × 87.5mm ×46.5mm
1. (American and European style)
Noise level: ≤85dB(A)
Power: 19.1kw
Weight: 9370kg
Floor Area: 7300mm × 6300mm
(All the products specification can be configured upon customized
requirements.)
