| Brand Name : | Dreamway |
| Model Number : | P6 |
| Certification : | CE,ROHS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10,000PCS/Month |
| Delivery Time : | 5 days after receiving the deposit |

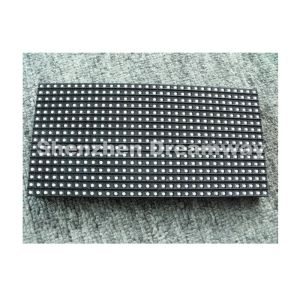

Indoor Advertising LED Display Module P 6 with Synchronization Control
Quick Detail:
1. 1R 1G 1B LED composition;
2. 12 pcs 5020 ICs;
3. About 0.16 kg/pc;
4. 512 dots per LED module;
5. Novastar controller for synchronization;
6. 1 pc power supply to control 10 pcs modules.
Detail Description:
There are 12 pcs JXI5020 driving ICs for each LED module;
This module is controlled by synchronization, with Novastar controller;
1 pc power supply with 5V 40A could support 10 pcs P6 indoor LED modules.
Specifications:
| Model | PH 6 |
| Resolution | 27,777 dots/sq.m |
| LED Type | SMD3528 |
| Module Pixel | W 32 × H 16 = 512 |
| Module Size | W 192 × H 96 mm |
| Luminance | More than 3,000 nits/sq.m |
| Drive Method | 1/8 scan constant current |
| Drive Voltage | 5V |
| MTBF | >5,000 hours |
| Life Span | >100,000 hours |


6 mm Indoor LED Display Module, High Definition LED Display Module, LED Display Screen Module
|   |
