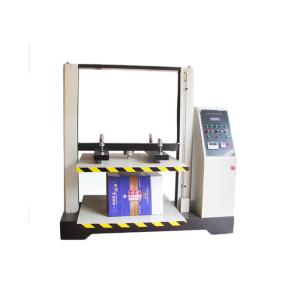

- Name: Computer Control Box Compression Tester for cartons pressure
strength
- Product Introduction:
- Quick Detail
Capacity | 500kg, 1000kg, 2000kg, 5000kg or customize |
Resolution | 1/100,000 |
Correctness of force | Better than ±1% |
Correctness of distortion reading | Better than ±1% |
Effectual range of testing force | 1~100%F.S |
Unit | kgf,gf ,N,kN,lbf |
2.2 Brief Introduction:
Computer Control Box Compression Tester used for measuring the pressure strength of cartons, containers,
etc, for inspecting the pressure-resistance and strike- endurance
of packing materials during transportation or carry.
2.3 Characteristics:
1 Adopting windows platform, all the parameter settings can be
processed in the dialog box, and it operates easily.
2. Using a single-screen operation, do not need to switch the
screen.
3. with three languages in simplified Chinese, traditional Chinese
and English, the software interface can be switched easily.
4. Choosing translational, overlapping mode at the same time to
make sure a number of curve date comparison.
5. With a variety of measurement units, measure in imperial and
metric are switchable.
6. Also, this paper tube compression test equipment has automatic
magnification function, in order to achieve the most appropriate
size of the graphics.
7. With an advanced design of machine structure which have strong
rigidness and small volume but light weight.
8. It can do test of compression strength, stack strength and peak
value.
2.4 Specifications:
Capacity | 500kg, 1000kg, 2000kg, 5000kg or customize |
Resolution | 1/100,000 |
Correctness of force | Better than ±1% |
Correctness of distortion reading | Better than ±1% |
Effectual range of testing force | 1~100%F.S |
Unit | kgf,gf ,N,kN,lbf |
Test space | 1000×1000mm (can customize) |
Space between platen | 1000mm (can customize) |
Drive System | servo system,precision ball screw, DC variable speed drive system |
Test speed | 0.01~500mm/min, keyboard inputing |
Return speed | 500mm/min |
Power | 1φ,220V±10% 50Hz |
Stop mode | Set limits of security, urgent stop key, programable force and
elongation setting, specimen damage sensing |
2.5 Safety Device:
Stroke protection, Force and Elongation protection, Emergency stop
device, Sensing device when specimen is destroyed.
2.6 Software Functions:
1. Use windows working platform, set all parameter with dialog
forms and operate easy;
2. Using a single screen operation, do not need to change the
screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7. With many units of measurement, the metric system and british
system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the
most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
