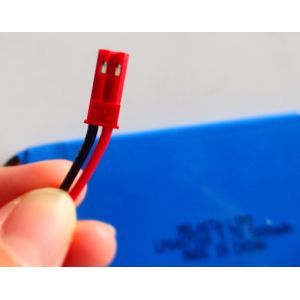

5000mAh Lithium Polymer Battery Pack 3.7v For Quadcopter
Basic Info.
Model NO.:LP6467100
Size:Small
Chargeable:Chargeable
Rated Capacity:5000mAh
Standard Voltage:3.7V
Discharge rate: 1C
Type:Lithium-Polymer Battery Pack
Accessories Type:Battery
Max Size:102.5x68.5x6.9mm
Export Markets:Global
Additional Info.
Trademark:Melasta
Packing:Carton, Box
Standard:CE, RoHS, UN, KC
Origin:Guangdong, China
HS Code:85078010
Production Capacity:100000PCS/Week
Product Description
Melasta 5000mAh LiPo Battery for RC helicopter (LP6467100)
Features:
1. Long discharge platform
2. Low inner resistance
3. Long cycle life
4. Low self-discharge
5. CE/RoHS/KC/UN certificate
6. Fast lead time
Applications:
RC helicopter, Quadcopter, GPS, portable DVD, PDA, Cellular phone,
notebook, earphone, bluetooth devices, MP3, MP4, RC toys,
Power-driven tools&toy, camcorder, digital camera, head set
stereo, handy terminal, mini disc player, etc.
Notice for Designing Battery Pack
7.1 Pack toughness
Battery pack should have sufficient strength and the LIP cell
inside should be protected from
Mechanical shocks.
7.2 Cell fixing
The LIP cell should be fixed to the battery pack by its large
surface area.
No cell movement in the battery pack should be allowed.
7.3 Inside design
No sharp edge components should be insides the pack containing the
LIP cell.
7.4 Tab connection
Ultrasonic welding or spot welding is recommended for LIP tab
connection method.
Battery pack should be designed that shear force are not applied to
the LIP tabs.
If apply manual solder method to connect tab with PCM, below notice
is very important to
Ensure battery performance:
The solder iron should be temperature controlled and ESD safe;
Soldering temperature should not exceed 350° C;
Soldering time should not be longer than 3s;
Soldering times should not exceed 5 times, Keep battery tab cold
down before next time
Soldering;
Directly heat cell body is strictly prohibited, Battery may be
damaged by heat above
Approx. 90° C
