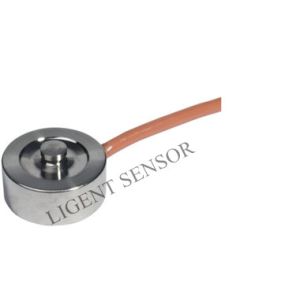

    Miniature Compression Load Cell, Micro Sensor, Capacity: 5~500KG

    Ask Lasest Price
    Brand Name : LIGENT
    Model Number : LFC-19
    Price : negotiation
    Delivery Time : 4 weeks after order confirmed
    Payment Terms : 100% before delivery
    Supply Ability : 10000 pieces per month
    • Product Details
    • Company Profile

    Miniature Compression Load Cell, Micro Sensor, Capacity: 5~500KG

    Features and Applications
    Stainless steel material, sealed by laser welding, and button model design;
    Oil-proof, water-proof and anticorrosion;
    Compression bearing, small size, and easy to install;
    Force measurement is small space installation, such as feeling tester for keyboard switch,
    compression measurement for hot and cold lamination machine, and grasping force measurement
    for robotic hands.

    Technical Specification Sheet
    Capacity3, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1000KG
    Rated Output1.0~1.5mV/VMaterialStainless Steel
    Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
    Non-linearity0.5%F.S.Recommended Excitation5V
    Hysteresis0.5%F.S.Maximum Excitation10V
    Repeatability0.5%F.S.Compensated Temp Range-10 ~ 60℃
    Creep(30min)0.5%F.S.Operating Temp Range-20 ~ 80℃
    Temp Effect on Output0.5%F.S./10℃Safe Load Limit120%
    Temp Effect on Zero0.5%F.S./10℃Ultimate Load Limit150%
    Input Impedance350 ± 5ΩCable SizeΦ2 ~ 3 × 2m
    Output Impedance350 ± 5Ω
    Wire ConnectionEx+ : Red; Ex- : Black; Sig+ : Green; Sig- : White
    ApplicationsForce measurement is small space installation, such as feeling tester for keyboard switch, compression measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
