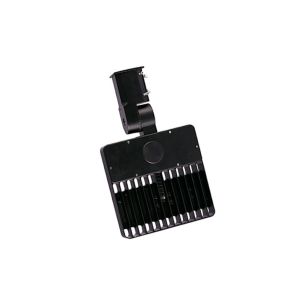

90/120 Deg LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable,
photocell
Description:
LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming
Feng in 2014. This light is allocated with top grade LED from Cree
/SAMSUNG and driver from Meanwell, which guarentees a working
lifetime over 100,000h hours and a warranty of 5 years.
Our this parking lights with IP65 waterproof, 90°, 120°, 90*120°,
85*135° different beam angle, Grey/ Black/Silver body color for
choose, Powder coated die casting aluminum, High standard corrosion
resistant finishing and UV resistant can be optional if required.6
different kinds of bracket avaiable for pole, wall...etc
installation.
CE, TUV, ROHS, FCC, DLC available, dimmable, photocell sensor
function.
Specifications: MF-P020 Parking Light Data Sheet.pdf
Item | MF-P020 |
Input voltage | 85-305Vac 50Hz/60Hz |
LED Power | 20W |
Rated Power | 2W |
Delivered Flux(Tj80°c) | 1900lm |
IP Rating | IP65 |
Luminous Efficiency | 130LM/W |
| LED Qty: | 10pcs |
| Pole Diameter(mm): | Dia60mm / Dia76mm |
Color temperature | 3000K / 4000K / 5000K |
LED Chip | Cree XTE/ SAMSUNG 351B |
LED Driver | Meanwell |
Color Rendering Index | 80+ |
Power Factor | >0.98 |
Lifespan | ≥100,000hrs |
Operation Environment | Temperature:-40°C~50°C / Humidity:10%~95% |
Material | Aluminum Alloy |
Product Size(mm) | 275(L)*364(W)*176(H) |
Packing Size(mm) | 400(L)*395(W)*115(H)/pcs |
Net Weight | N.W:4.5Kg G.W:6.0kg |
Certificate | CE/RoHS/TUV/FCC/DLC |
Warranty Period | 5 years |
Competitive Advantage:
1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency
acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V,
PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.
4. Beam Angle: 90°, 120°, 90*120°, 85*135°
5. Functions: Dimmable, Photocell available.
6. Warranty: Five years
7. Material: Powder coated die casting aluminum, High standard
corrosion resistant finishing and UV resistant can be optional if
required.
8. Body color : Grey/ Black/Silver
Dimension:
Application:
Parking Lot lighting, wall lighting area, street lighting...etc.
