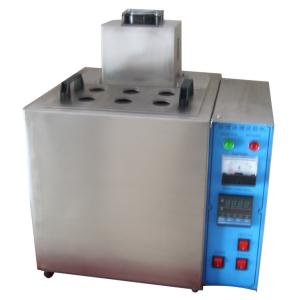

    Wire Industry Cable Testing Equipment Thermostatic Control Oil Bath

    Ask Lasest Price
    Brand Name : Gaoxin
    Model Number : GX-4019
    Certification : ISO 2008
    Price : negotiation
    Payment Terms : FOB Shenzhen, L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Wire Industry Cable Testing Equipment Thermostatic Control Oil Bath


    Cable Testing Equipment Thermostatic Control Oil Bath For Wire Industry


    1.Quick Details:


    Alternative name

    High temperature oil bath

    Function

    Test capability of cables under high constant temperature

    Feature

    Electric drive

    Weight

    87kg

    Volume

    500×400×400(MM)

    Test standard

    JIS-C-3005


    2.Equipment Description:


    The constant temperature oil bath is used for testing properties of insulating materials of cable and wires after bearing specific high temperature.

    Soaking the insulated materials in the testing oil under regulated temperature for certain time, then take out and test stretching remnant and stiffness of vanished wires to check the quality of paint coating.


    3.Technical Parameters:


    Model

    L

    M

    Applicable specimen

    dumbbell shape specimen block

    Varnished wires

    Specimen

    Test glass 6pcs,Φ38mm,depth 300mm

    Testing tank 300×200×200mm

    Temperature

    N.T ~200℃ or 300℃

    Mixing motor

    40w

    Volume

    50×40×40cm

    68×32×45cm

    Weight

    25kg

    15.5kg

    Power

    1∮,220V,9A


    4.Testing specification:


    Material

    Rubber coating

    insulated plastics or coating

    Varnished wires

    Specimen specification

    Dumbbell-shape specimen block 3pcs or 4 pcs

    Length 20cm

    Testing oil

    2# lubricating oil according to regulation of CNS-356

    electric insulating oil according to terms of CNS-132

    Testing temperature

    120℃

    70℃

    100℃

    Test time

    1.8H

    4H

    24H(oleoresin enamel paint for 6 hours)

    Soaking depth


    15cm

    5.other parameters:
    rest rate= average value after soaking ÷ average value before soaking ×100
    temperature: N.T to 150℃
    digital display resolution: 0.1℃
    temperature fluctuation: ±1℃
    test glass: 6pcs Φ38mm, depth 300mm
    pumping flow: internal circulation
    dimension of the oil bath: 300*330*300(MM)
    outside dimension: 500×400×400(MM)
    power: 1∮AC220V,7.5A
