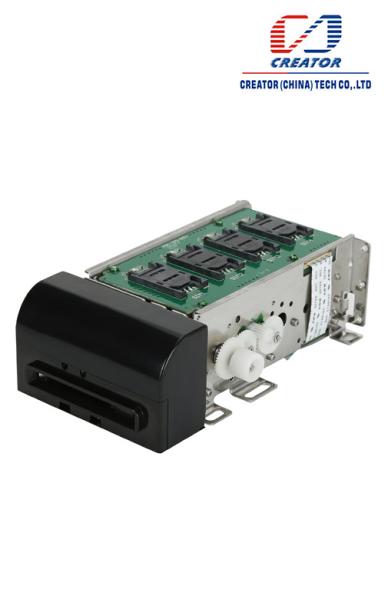

    RS232 Motorized Card Reader / IC Card Reader Equipment For Self-Service Device

    RS232 Motorized Card Reader / IC Card Reader Equipment For Self-Service Device


    Quick Detail:


    CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.


    Description:


    Motorized card reader CRT-310 with below main features:

    ★ RFID/IC card read/write, magnetic stripe card read only

    ★ Insert and eject the card from both front and rear side

    ★ RS232 interface

    ★ DC12V ±5%

    ★ DC24V/DC12V converter plate

    ★ Power-fail protection

    ★ Deal with abnormal cards function

    ★ Electric shutter and mechanical shutter for option

    ★ PSAM board for option

    ★ Support IAP Download


    Specifications:


    Card standard

    Magnetic Card: ISO7810 ID-1,ISO7811
    IC Card: ISO7816-2
    RF Card: ISO14443 TYPE A&B

    Life time

    Magnetic head:500,000 passes

    IC card contact:300,000 passes

    Motor:300,000 passes

    Communication

    RS232 interface

    Power supply

    DC12V±5%

    Current consumption

    Static Current: 110mA

    Peak Current: <1.5A

    Temperature/Humidity

    Operation:0~50℃/0 ~ 90% RH(Non condensing)
    Storage:-20~70℃/0 ~ 90% RH(Non condensing)

    Dimension (LxWxH)

    148x86x48mm

    Weight

    Approx 410g


    Applications:


    ATM

    Security Terminal

    Gaming system

    Information Kiosk

    Payment Kiosk

    Parking Kiosk

    Access Control System

    Magnetic Stripe


    Competitive Advantage:


    RFID/IC card read/write, magnetic stripe card read only.

    Automatic insertion/ejection of the cards

    Insert and eject card from both front and rear

    Electric and mechanical shutter for option

    Power-fail protection

    PSAM board and LED for option

    Abnormal card processing

    Support IAP download
