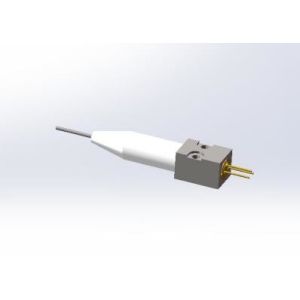

    Buy cheap Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser from wholesalers

    Buy cheap Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser from wholesalers
    • Buy cheap Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser from wholesalers

    Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser

    Ask Lasest Price
    Brand Name : BWT
    Certification : ISO9001
    Model Number : K520F03FN-0.010W
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser

    Features:

     520nm wavelength 

    10mW output power 

    105µm fiber core diameter 

    0.22N.A.

    Applications:

    • Aiming beam
    Specifications (25℃)SymbolUnitK520F03FN-0.010W
    MinimumTypicalMaximum
    ParameterCW Output PowerPoW10--
    Threshold currentIthA-60
    Operating currentIopA--180
    Operating voltageVopV--8
    Reverse VoltageVreV-2-
    Slope EfficiencyηW/A-0.08-
    Electrical-to-Optical EfficiencyPE%0.5--
    Center wavelengthλcnm510-530
    Spectral width(FWHM)λnm-3-
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.2-
    Back reflection isolation-dB-30-
    Fiber DataBuffer diameterDbufμm-250-
    Cladding diameterDcladμm-125-
    Core diameterDcoreμm-105-
    Numeric apertureNANA-0.22-
    Fiber lengthlcm0.911.1
    Connector--FC(APC)/SC(APC) /SMA905/ST
    Fiber Bend Radius-mm-40-
    OthersESD-V--500
    Storage temperature--20-70
    Lead Soldering TempTis--260
    Lead Soldering TimeTissec--10
    Operating case temperatureTop15-35
    Relative Humidity-%15-75
    Product Tags:

    35nm diode laser



    red laser diode

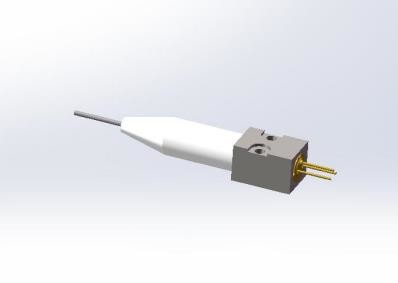

    Quality Diode Laser Module 520nm 10mW Coaxial Packaged Diode Laser for sale
