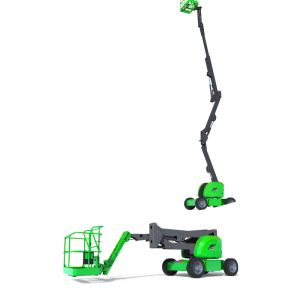

Compact Articulating Lift For Complex Work Environments

    Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers

    Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers
    • Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers
    • Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers
    • Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers
    • Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers
    • Buy cheap Compact Articulating Lift For Complex Work Environments from wholesalers

    Compact Articulating Lift For Complex Work Environments

    Ask Lasest Price
    Brand Name : CHENLIFT
    Certification : CE
    Model Number : HAJ
    Price : Negotiable
    Delivery Time : 30 days
    Payment Terms : T/T L/C
    Supply Ability : 200 sets/month
    • Product Details
    • Company Profile

    Compact Articulating Lift For Complex Work Environments

    Articulating Boom Lifts: Precision Access for Complex Work Environments


    Unmatched Flexibility & Control


    Our articulating boom lifts set the standard for precision access with their revolutionary jointed-arm design. Engineered to outperform conventional lifts, they deliver:

    ✔ Multi-Axis Maneuverability – Reach over, under, and around obstacles with ease

    ✔ Pinpoint Positioning – Perfect placement for delicate or complex tasks

    ✔ Compact Performance – Operates in tight spaces where other lifts can't


    Engineered for Challenging Applications


    • Industrial Maintenance – Access tight plant spaces

    • HVAC Systems – Precision positioning for installations/repairs

    • Stadium Lighting – Navigate complex structural elements

    • Building Restoration – Gentle on historic structures

    • Film Production – Smooth, quiet operation for sensitive sets

    Product Paramenters:
    1-Power Source: Diesel Engine And Battery
    2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment
    3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate
    4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures
    5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment.
    ModelHA9JHA11JHA14JHA16JHA18JHA20J
    Max. Working Height11.5m12.52m15.8m17.7m20.2m22.5m
    Max. Platform Height9.5m10.52m13.8m15.7m18.2m20.5m
    Max. Up and Over Clearance4.5m4.65m7m7.3m8m9.4m
    Max. Working Radius6.2m6.5m7.5m8.9m11.1m11.8m
    Platform Size1.4*0.7m1.4*0.7m1.4*0.76m1.4*0.76m1.8*0.76m1.8*0.76m
    Length-stowed5.2m5.6m6.5m7.2m8.49m8.99m
    Width-stowed1.27m1.5m1.76m1.9m2.49m2.49m
    Height-stowed2.0m2.0m2.0m2.0m2.38m2.38m
    Wheelbase1.75m1.95m2.0m2.0m2.5m2.5m
    Ground Clearance0.14m0.14m0.25m0.25m0.3m0.3m
    Platform Capacity200kg200kg230kg230kg230/350kg230/350kg
    Platform Rotation±80°±80°±80°±80°±80°±80°
    Turntable Rotation355°355°355°355°355°355°
    Vertical Jib Rotation(Up/Down)±70°±70°±70°±70°±70°±70°
    Drive Speed (Stowed)4.8km/h4.8km/h5.1km/h5.0km/h4.8km/h4.5km/h
    Gradeability (Stowed)35%35%30%30%45%40%
    Max. Working Angle
    Turning Radius (Out.)3.3m4.08m3.2m3.45m5.0m5.0m
    Drive and Steer2*22*22*22*24*24*2
    Battery48V/320Ah48V/320Ah48V/320Ah48V/320Ah48V/420Ah48V/420Ah
    Pump Motor Power4kw4kw4kw4kw12kw12kw
    Driving Motor Power3.3kw3.3kw3.3kw3.3kw3.3kw3.3kw
    Control Voltage24V24V24V24V24V24V
    Weight4800kg5200kg5960kg6630kg9100kg10000kg

    Our Company
    Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

    We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
