12V Miniature Air Pump Silent Air Pumps Low Noise

12V Miniature Air Pump Silent Air Pumps Low Noise

Quick Detail:

60L/m air flowrate

30kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

lifetime more than 20,000hours

size:138x155x96 mm

weight:3kg

Outlet & Inlet Dia: 9.8 mm

Description:

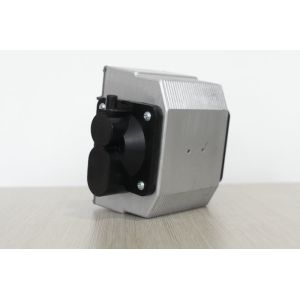

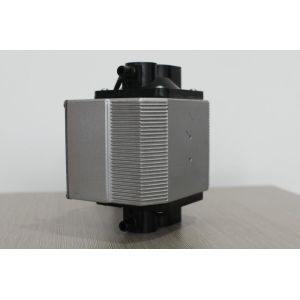

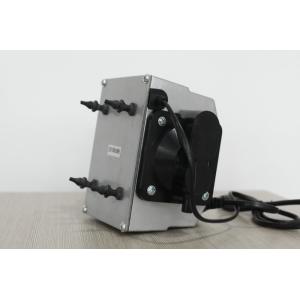

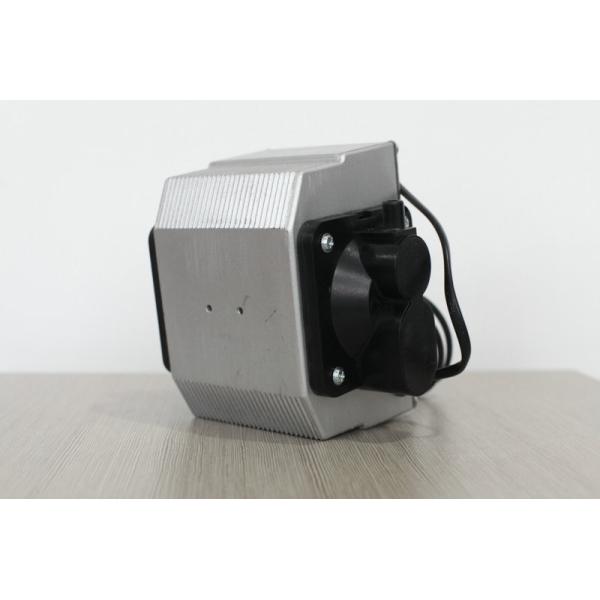

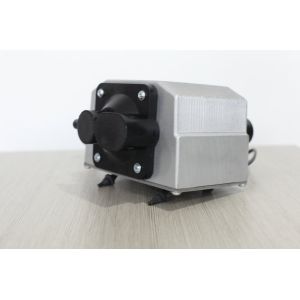

CINH Mini AC Miniature Air Pump QBF-9530A Series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

• Compact size
• Steady air outputs with low noise
• Very low vibration
• Low power consumption
• Economical

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 120SCFH(60Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 35W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 9.8 mm

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 138x155x96 mm

Net Weight: 3kg

Performance Curve

Competitive Advantage:

long lifetime, high quality, 60L/M air flowrate and 30kpa pressure, AC Miniature Air Pump
