    Precise Surface Roughness Tester Portable Rough Scan Wide Measurement

    Ask Lasest Price
    Brand Name : SADT
    Certification : ISO9001
    Model Number : Roughscan
    Delivery Time : Within one week after recept of advanced payment
    Payment Terms : T/T in advance, Western Union
    Supply Ability : 50pcs/week
    Price : USD900-1500/Pcs
    • Product Details
    • Company Profile

    Precise Surface Roughness Tester Portable Rough Scan Wide Measurement

    Precise Surface Roughness Tester Portable Rough Scan Wide Measurement

    Micro processed Surface Roughness Tester RoughScan with powered battery


    Portable SADT RoughScan Precise Surface Roughness Tester wide measurement

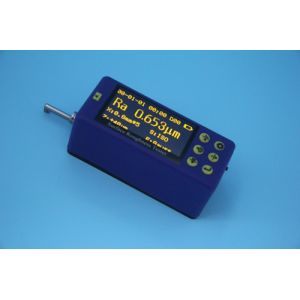

    RoughScan is a portable, batterypowered, micro processed instrument for checking surface roughness with digital readout on LCD. RoughScan can be widely used in laboratory, inspection area in the shop, or wherever on-site surface roughness testing is required.


    Model

    RoughScan

    Display

    3-digit LCD

    Measuring range

    Ra(ISO): 0.03μm-6.3μm/1μ"-250μ"
    Rz(DIN): 0.2μm-25.0μm/8μ"-999μ"
    Ry/Rmax(ISO):0.2μm~250μm/8μ"~999μ"

    Resolution

    0.01μm/1μ"

    Accuracy

    conform ISO and DIN standards

    Uncertainty

    ≤ 2%

    Cut-off(l )

    0.8mm/0.30", ANSI 2RC Filter

    Power

    9-volt alkaline battery

    Battery capacity

    approx. 3000 measurements

    Probe type

    piezo-electric

    Maximum stylus force

    15.0mN / 1500mgf

    Operating temperature

    10°C~45°C / 50°F~113°F

    Storage temperature

    0°C~60°C / 32°F~147°F


    Traverse lengthEvaluation lengthNumbers of cutoff
    0.5mm0.25mm1
    1.2mm0.8mm1
    5.5mm5.0mm1
    1.25mm0.75mm3
    3.0mm2.4mm3
    5.5mm5.0mm3
    1.75mm1.25mm5
    4.5mm4.0mm5
    5.5mm5.0mm5

    Standard package -RoughScan


    RoughScan main unit 1
    Standard probe 1
    Calibrate plate with the reference specimen 1
    9-volt alkaline battery 1
    Screw driver 1
    Operation manual 1
    Carrying case 1
