24V 10Ah Ni-Mh Rechargeable Battery Pack 240Wh For E-bike

24V 10Ah Ni-Mh Rechargeable Battery Pack 240Wh For E-bike

Quick Detail:

is_customized:Yes

Brand Name:Melasta

Type:NI-MH

Voltage:24V

Size:230mm x 98mm x 60mm

Nominal Capacity:10Ah

Composed Type:20S1P

Model Number:D10000-20S1P

Weight:4.2kg

Application:E-Bike

Place of Origin:Guangdong, China (Mainland)

Specification:

Battery pack: D10000-20S1P 24V 10Ah ( place 20 pcs NiMH D9000 1.2V 10000Mah cylindrical cells in series as one 20S1P battery pack)

Cycle life: > 600 times (60% of initial capacity @ 0.2C rate, IEC Standard)

Standard charge: 0.1C ( 1A); charge time: 15h

Fast charge: 2A (0.2C)-5A (0.5C); charge time: 6h

Standard discharge: 10A

Maximum Dishcarging Current: 30A

Discharge Cut-off Voltage: 20V

Charging temperature: 0 to 40 degrees Celsius

Discharge temperature: -20 to 50 degrees Celsius

Storage temperature: -20 to 30 degrees Celsius

Max Dimension (LxWxH): 230mm x 98mm x 60mm

Weight: 4.2kg

Warrenty: 6 months

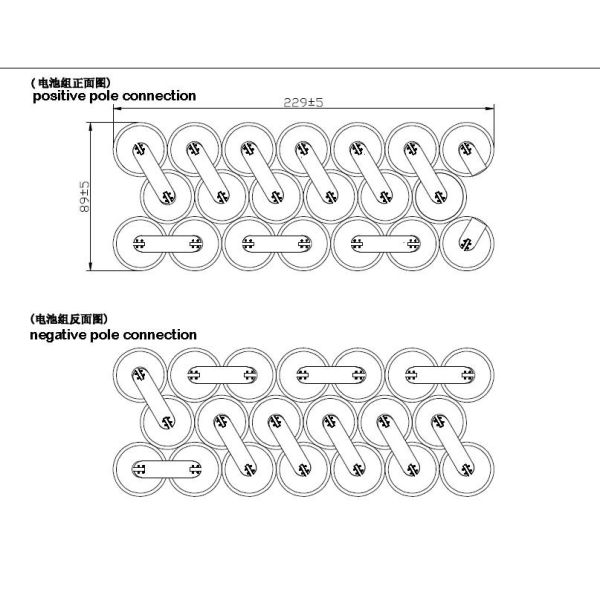

Battery Dimension:
