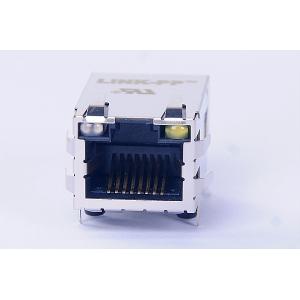

0826-1X1T-57-F 10/100 BASE-T PoE RJ45 Jack ICM With OG/Y LEDs

100 BASE-T PoE RJ45 Jack Features:

1. Supports 10/100BASE-T data transmission.
2. AutoMDIX Support
3. Supports PoE up to 15W, providing power and data transmission.
4. Operating Temperature Range of 0° to +70° C.
5. RoHS Compliant, Soldering = 260° C for 10 Seconds.
6. Single port (1X1) configuration with a tab-up design.
7. Equipped with Orange/Green and Yellow LED Indicators.
8. Standard height profile.
9. Integrated EMI tabs for improved electromagnetic interference protection.
10. Through-hole Mounting Style for secure and durable PCB mounting.

Applicaitons of 0826-1X1T-57-F Belfuse MagJack:

• Networking Equipment
• Blade servers or cards
• Network Interface cards
• Laptop computers
• Storage systems
• Mezzanine cards

ELECTRICAL CHARACTERISTICS @25℃:

1. TURNS RATIO: 1CT:1CT ±2%
2. DCL @ 100KHz/100mVRMS 8MA DC BIAS: 350μH MIN.
3. INSERTION LOSS
100KHZ T0 100MHZ: -1.5 dB MAX.
4. RETURN LOSS(MIN.)
2MHZ-30MHz: -16 dB MIN.
60MHZ-80MHZ: -10 dB MIN.
5. CROSS TALK
100KHZ -100MHZ: -30 dB MIN.
6. HIPOT (ISOLATION VOLTAGE) 2250 VDC
100% OF PRODUCTION TESTED TO COMPLY WITH IEEE 802.3 ISOLATION REQUIREMENTS.
7. BALANCED DC LINE CURRENT:
350MA MAX @57 VDC CONTINUOUS
500MA MAX @57 VDC FOR 200 MILLISECONDS

NOTES:

1. PLASTIC HOUSING:
THERMOPLASTIC PA, BLACK FLAMMABILITY RATING UL 94V-0
2. CONTACTS:
50 MICRO-INCH HARD GOLD PLATING OR EQUIVALENT.
30 MICRO-INCH MIN NICKEL UNDERPLATE
3. OUTPUT PINS:
TIN-COATED C0PPER WIRE, DIA 0.018 INCH.
100 MICRO-INCH MIN MATTE TIN PINS ARE SOLDER DIPPED
4. METAL SHIELD:
NICKEL PLATED ON COPPER ALLOY (ALL GROUND LEADS ARE SOLDER DIPPED)
5. THE PRODUCT IS ROHS COMPLIANT
6. JACK CAVITY CONFDRMS TO FCC RULES AND REGULATIONS
7. THE PART IS RECOMMENDED FOR WAVE SOLDERING, THE SUGGESTED PEAK WAVE SOLDERING CONDITION IS 260℃ MAX AND 10 SECONDS MAX.
