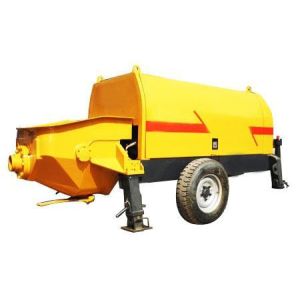

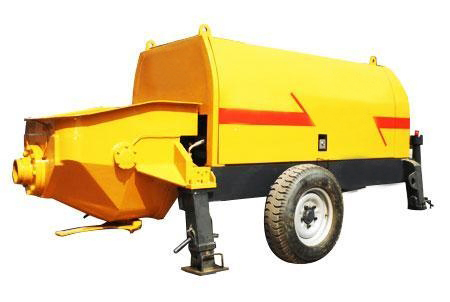

HBTS40 mining concrete pump from China coal

Product Introduction

HBTS40 mining concrete pump is a high-quality diesel engine-powered, mechanical, electrical and hydraulic technology for the integration of high-tech products, such as for non-power dynamic environment of the concrete pumping operations. Widely used in high-rise buildings, roads, water, bridges and other construction yard facilities.

HBTS40 mining concrete pump hydraulic system with dual discrete open-loop system, high efficiency, good heat dissipation, smooth. Valve has a variety of configurations. High reliability, seals coupling system layout scientific and reasonable. Pumping system with constant power control, stepless adjustment of the pumping speed, plugging automatic anti-pump function. S-type distribution valve with high hardness and wear rings floating hardness alloy glasses, plates and matching, extremely long life. The unique system layout, exterior design, the machine compact small size, but easy to maintain, more comfortable operation, disassembly of the wearing parts is very convenient.

Main Parameter

Max theoretical concret conveying capacity(m³/h):72

Max Pump outlet pressure (MPa):8

Hydraulic system forms: open

Engine Type: Electric

Rotation speed(r/min):1480

Power(KW):55

Distributing valve: S valve

Oil Cylinder Bore (mm):100

Conveyting cylinder Bore(mm):200

High and low voltage switch: Yes

Hydraulic tank capacity(L):460

Hopper volume (m³):0.8

Feeding height(mm):1280

Outer size(mm):5400×1860×1900

Machine weight(kg):5400

Shandong China Coal Industrial&Mining Supplies Group Co.,Ltd (hereinafter referred to as china coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.

China coal is a professional manufacturing base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine construction products with advanced high technology.

In order to development of international trade , expansion overseas market, china coal established international trade branch company and import and export branch company. China coal actively expand foreign trade channels based on a good market image, brand, modern information platforms and capital protection. Based on the trading diversification strategy, the group established a chain loop trading system which is with import and export trade of the mining equipment as a core, the resources and market as the elements. China coal also formed an overseas sales team, that covers English, French, German, Portugal, Italy, Russian, Korean, Japanese, Arabic, and more than 10 language professionals to explore broader international markets on the Internet. At present, the group signed up for "china coal" trademark in the European Union, United States, Russia, United Kingdom, Taiwan, Macao, Singapore, Indonesia, Israel, and other countries, also got the right to use the trademark of the United Kingdom and Taiwan. Hundreds of kinds of products such as tunnel boring machine, coal cutter machine etc. is exported more than 60 countries and regions which are the United States, Australia, Germany, Russia, Spain, France, Canada, United Kingdom, Italy, Portugal, Georgia, Austria, and Colombia. China coal is to establish long-term, broader economic and trade cooperation and strategic partnership with a number of large state-owned enterprises and customers, and won the unanimous approval of them.

China coal has succeeded in passing a number of certification systems which are ISO9001, 2008 quality management system certification, United States ANAB management system certification, United Kingdom international authoritative certification bodies UKAS quality management system certification, SGS certification (made in China), Alibaba GIS certification. She has also obtained a variety of honor which are China excellent enterprise of mechanical industry, China equipment manufacturing operation top 10 enterprises, national reputation for quality assured supplier, China credit certification system demonstration unit, national quality trustworthy product for conformity assessment, national consumer satisfaction units, China AAA level quality trustworthy enterprise and Chinese e-commerce company credit rating AAA level credit Enterprise.
