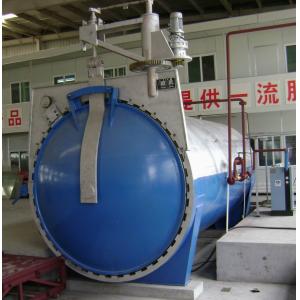

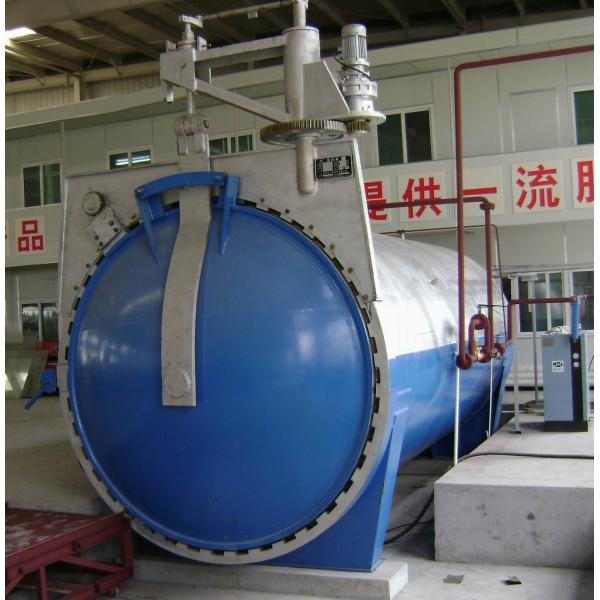

Glass Laminating Autoclave with electrial hydraulic pressure
opening door for laminated glass
Quick Details:
Specification:Φ3.2XL
Working medium:compressed air
type: Laminated Glass Autoclave
design temperature:160 ℃
design pressure:1.5Mpa
working temperature:150 ℃
working Pressure:1.3Mpa
heating power:72kw
structure: single opening
Applications: Wood, Brick,Rubber, Food, Glass, aerospace,textile
industries.
Specifications:
Items | Unit | Specifications and Parameters |
FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D |
Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
Effective length | M | 4 | 5 | 5 | 5 | 5 |
Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
Medium |
| air | air | air | air | air |
Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
Gross weight | T | 7 | 9 | 16 | 25 | 30 |
Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
Applications:
1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry
6. building industry
7. aerospace industry
8. textile industry
Glass Autoclave Description:
Glass autoclave is a kind of key equipment, which is used for glass
deep-processing. To achieve the safety demands of laminated glass
through the pressure and heat treatment process.
It is widely used in automotive industry, aerospace, defense
industry, building decoration, etc. It is equipped with the safety
valve, the pressure gauge, the temperature element and so on.
Besides power driven, pneumatic ways to open the door, it also has
the safety interlock. There are heating elements for warming &
forcing and cooling device inside of the autoclave. It will
automatic control and detect the opening and closing doors,
temperature, pressure in autoclave by PLC controller, which is the
glass workpiece precess.
Attention:
1, the liquid circulation of the entire glass reactor system is
airtight, and the system has an expansion vessel, the expansion
vessel and the liquid circulation are adiabatic, it does not
participate in the liquid circulation, but is mechanically
connected, the medium temperature in the expansion vessel must be
low At 60 degrees, regardless of whether the temperature of the
liquid circulation is high or low temperature.
2, the entire liquid circulation is a closed system, there is no
water vapor absorption at low temperature, there is no oil mist at
high temperature, heat conduction oil can be a wide working
temperature
Competitive Advantages:
Autoclave is a kind of large-scale steam equipment. It can be used
to steam sand lime brick, flyash brick, slag brick, aerated
concrete block, cement pile and other cement products. Besides
that, it also has a widely application in deep processing of glass,
wood, rubber, thermal insulation material, medicine, high strength
gypsum, sizing the fishing net industry and so on. We can
manufacture various forms of the autoclaves according to the
requirements of our customers.
Experts In our company absorbed the advantages of foreign similar
products, and improved the strength calculation by analyzing the
main pressure parts and doing all kind of stress test.
We've got ASME,ISO and other certificates for our glass laminating
autoclaves.
