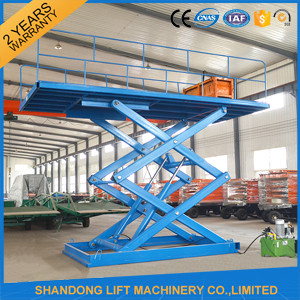

Underground car parking lift hydraulic scissor car lift with CE
Parameter:
1) load capacity : 3000kgs
2) platform size : 5.2m x 2.6m
3) travel height : 3.5m
4) structure : high-strength Manganese steel
5) power : 380v / or 220v / or 240v / or 400v
6) Installation : underground , into a pit
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered
iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese
Steel.
3) Hydraulic system: 380V/4.0Kw
4) High Precision Hydraulic Cylinder: 100*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency
occurs
2) The safety guard rails to guarantee safety of the car above
platform
3) The limit switch system helps the car parking lift hydraulic
scissor car lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all
electric components are CE certified.
5) All the car parking lift hydraulic scissor car lifts are passed
1.2 times loading test before leaving factory.
Application:
The car parking lift hydraulic scissor car lifts car can be used to lift car with different levels, suitable for car
moving between stairs, from basement to first floor, to second
floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the car parking lift hydraulic scissor car lifts , 1 control box below, and 1 hand controller on safety rail that
can be operated on work platform.
The models we supplied for clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 750mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1050mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 950mm | 220V, 240V, 380V or 400V |
The car parking lift hydraulic scissor car lift car can be customized as your detailed size. |
The customers visiting:
The Certificates:
Our services:
1) The Car Parking Lift Hydraulic Scissor Car Lift can be done as per your detailed parameter
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults
during warranty time.
7) Supply 24-hours technical assistance by email, telephone or
skype.
8) Engineers are available to your country if necessary.
