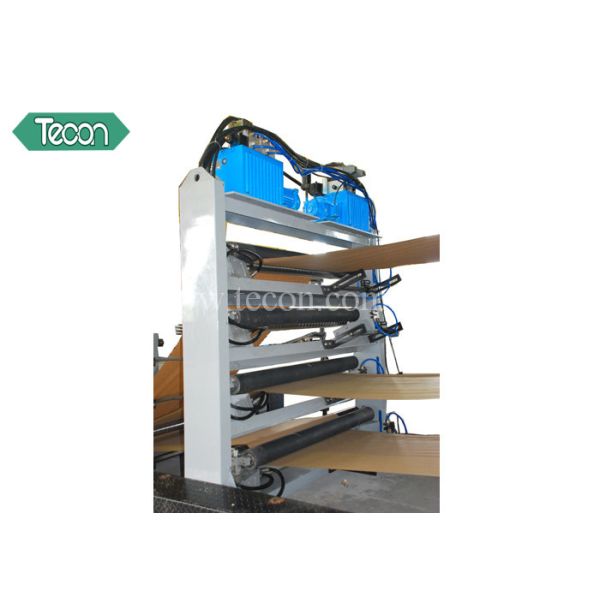

Full Automatic Paper Sack Machine High Speed With PLC Control Panel

Full Automatic Paper Sack Machine High Speed With PLC Control Panel

Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency

conversion motor to save more electricity and regulate speed more freely. The color code tracker

with good performance makes the sealing and cutting length more accurate and the error smaller.

Technical parameters of Valve paper bag production line:

ZT9802Tuber

1. Equipment Model (ZT9802S)

2. Tube Length: 400~1400mm

3. Tube Width: 320~620mm

4. Tube Cut Length: 420~1400mm

5. Printing width: 1300 mmMAX

8. Diameter of paper roll: PDø1300 mmMAX

9. Width of paper roll: 660~1260 mm

10. ube Speed(S): 130 pieces /minMAX

12. Main Drive Motor power: 47KW

13. Gross weight 33T

ZT9804 Tuber Machine compose of following parts

HD4913 bottomer

1. Working speed:80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)

2. Bag length:520~880mm

3. Bag width420~600 mm

4. Bottom width:90~130mm

5. Bottom centers distance:420~780mm

6. Valve sheet length:100~250mm

7. Valve sheet width:120~170mm

8. Main drive motor:33kw

9. Size of whole set:21.3m×2.3.m×1.8m ( L×W×H)

HD4913 Bottomer machine compose of following parts

About us

Foshan Tecon is a high-tech equipment manufacturer. In 1996,We designed the first production line for sack making, and now we are top three listed in the world in this industry and the only one in China able to

design and manufacture the whole production line of bottom pasted paper bag.

Our factory in Shunde,Foshan

Welcome visit!

Tecon Package Machinery Ltd is a modern high-tech company engaging in paper sack packaging machinery's research and development. We designed the first production line for

paper bag 20 years ago, and now we are listed in the world top three in this industry and

the only one in China able to design & manufacture the whole production line of bottom

sealed paper bag.

The leading product of our company is the "High-Speed Automatic Bottom-Pasted Bag Making Machine", which is designed for various kinds of environment-friendly paper sacks,

such as the paper sacks for cement, chemical raw materials, starch, animal feed etc. This

 machine was rated as one of national new products in 1996, which filled up the blank of

domestic technology. This product was also awarded Packaging Science and Technology

Awards in China in 2000, highly praised by the National Bureau of Building Materials Industry, Packaging Institute of China as well as the Chinese Cement Packaging institute's leaders.

Paper bag is replacing PE/PP woven bag in most of the countries now and we are facing a fast developing period. We are aiming to provide a full paper bag making solution to all over the

world, let the world find cost-effective, high automatization, high production capacity paper

bag production line. Our equipment has served Chinese paper bag industry for 20 years and started running into oversea market for 8 years. Now there are more than 25 Tecon paper

bag production lines operating in 13 countries. They are producing paper bags used for

packing cement, sugar, milk powder, rice, chemical products, etc.

To improve the management of company and guarantee the quality of products, Tecon

Company has devoted tremendous resources and gained the ISO9001: 2000 international

quality certificate. With good reputation and high quality as purpose, we provide quality

pre-sale and after-sale services to customers including machine designing, installation and maintenance etc. We firmly believe that we will realize the goal of exceeding customer's satisfaction by unremitting efforts and persistent pursuit.
