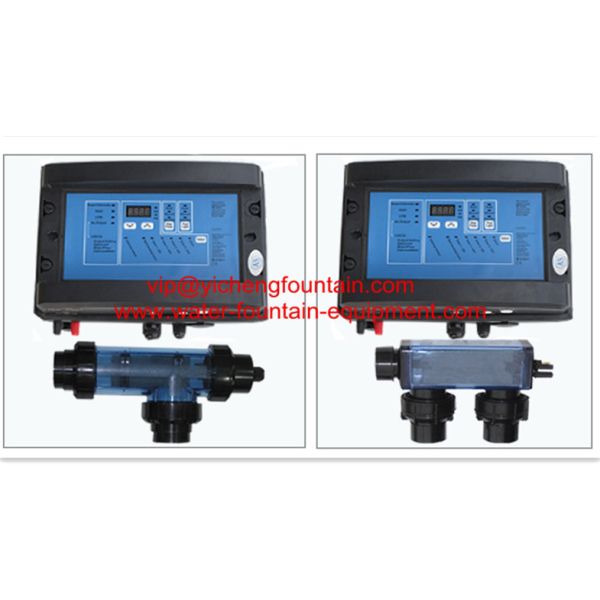

Electric Swimming Pool Control System Pool Sterilization With Solar
Function
Description:
We have salt water chlorinator both for fresh water and sea water.
The chlorinator has a number of functions and indictors to assist
in the operation of the unit.
Please refer to the explanatory notes and diagrams to understand
each function.
1. On/Off Auto Switch On for Manual operation, auto for time clock
operation
2. System Control Used to adjust the chlorine production.
3. Display This shows the output in a percentage form (%) 100% =
Maximum output
4. Winter Switch Use in cooler weather. Adjusts output to 82%
5.Operation LEDs this shows the conditions the cell is operating
in. See Pages 8 for
further details.
6. Time Clock This allows for automatic start & stop of the pump
and chlorinator.
7. Pool Light Switch - Operates the pool light if fitted.
8. Fuses are incorporated for protection of transformer and
electronic equipment.
Features:
Designed in Australia and manufactured in China
- 2-in-1 models
- Totally auomatic ans easy to install
- Maintains chlorine output with fluctuating salt levels
- Sanitises your pool
- Ensures clean sparking water
- Easy touch control operation
- Self-cleaning saves your time and money
- Long life durability 10 years battery back up
- Manual dose or automatic dose timers
- Certificate of Australian approval
Important Information:
1m3 needs 4kg salt, 1m3 needs 4g chlorinate
X15 can for 30m3 / 40,000 litres pools;
X20 can for 50m3 / 60,000 litrespools;
X30 can for 70m3 / 80,000 litrespools;
X50 can for 100m3 / 100,000 litrespools;
The first start should run 26 hours, and then everyday running
1.5-3 hours is enough.
Cell Details: made of 99% titanium material
15g cell: 48*100mm 9pcs
20g cell: 48*120mm 9pcs
30g cell: 48*130mm 9pcs
50g cell: 48*150mm 9pcs
Model | Decription |
X20CL | output 20g/hour, 2 in 1 function without solar control |
X20CLS | output 20g/hour, 3 in 1 function with solar control |
X30CL | output 30g/hour, 2 in 1 function without solar control |
X30CLS | output 30g/hour, 3 in 1 function with solar control |
X50CL | output 50g/hour, 2 in 1 function without solar control |
X50CLS | output 50g/hour, 3 in 1 function with solar control |
X20 cell | replacement cell with union, 20g/hour, self-cleaning |
X30 cell | replacement cell with union, 30g/hour, self-cleaning |
| X50 cell | replacement cell with union, 50g/hour, self-cleaning, only has
rectangle shape |
We have new(round) and old(rectangle) cell to choose, please tell us your choice before you place the
order
