Automatic Barcode / Qr Code Turnstile Ticket Management Systems For
Tourist Area , Museum , Cinema Entrance
Description:
Goldantell intelligent Series of tripod turnstile gates with
excellent design and good performance are produced by utilizing
innovative technology and high quality material, are available with
unique features for wide range of security, commercial and
industrial applications to meet customer satisfaction. Our
pedestrian barrier Gates can provide a level of security to meet
any challenging requirements, including anti-pinch, time
attendance, or passing management, etc.Especially,Barcode Tripod
Turnstile series are widely used for public Appilications,
including famous scenic spots, canime ,amusement park, swimming
pool, shipping mall, etc.
Barcode Access Controller Technical:
| Processor: | ARM 926 300 MHz |
| Memory | 64 M3 / 128 M4 |
| Working temperature: | -20 ℃ ~ + 70 ℃ |
| The input voltage: | DC 12V- 18 V |
| Power consumption: | <18W, network |
| Interface: | RJ 45 10M / 100 Mbps auto-sensing Ethernet port |
| Operating relative humidity: | 10% to 90% (non-condensing) |
| USB interface: | 2 (can connect usb cameras) |
| The serial interface: | 2 RS 23210 |
| 4 relay output, open-drain output transistor 4 opto-isolated input
signal |
| 8 13,2 Road Wiegand compatible with Wiegand 26,34,44 |
1 a TFT LCD screen, standard 7-inch (RGB). |

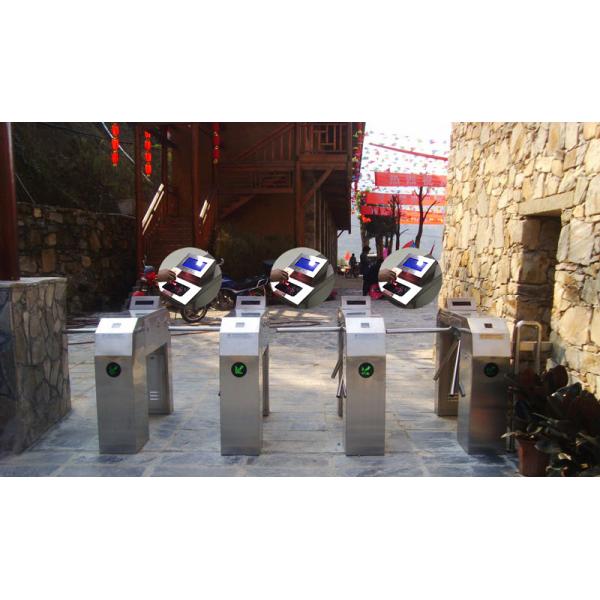

Barcode Scanner built in the Tripod style Turnstile gate ,like below
The software including below modules:
1-On-site tickets module
2-Ticket Module
3-Wicket module
4-System Configuration Module
5-System Management Module
6-Financial accounting management module
7-Customer Relationship Management module
8-User Management Module
9-Ticket category management module
10-System monitoring module
11-Data management module
12-Statistical Reporting Module
13-Remote report module
14-Checkout account module level
15-Financial Analysis Module
16-Customer analysis module
17-Ticket Object Management Module
18-Tour management module
19-Travel management module
Barcode Scanner technical:
Reliable performance, portability, provides a powerful solution for
all one- dimensional, PDF and 2D bar
code scanning. Simple and elegant shape design allows it to
seamlessly integrate into a variety of
application environments.
Specification
1-Type: manual / semi-automatic or full automatic operatation
2- Dimensions :120 * 28 * 100 CM
3- Passage width:600 mm
4- Direction:single or bi-directional (optional)
5- Communication interface:standard RS485 interface, distance
≤1200m
6- Input interface:+12V level signal or pulse width>100ms, 12V
pulse, drive current>10mA
7- Normal running life:3 million
8-Time of opening:1-2 second
9- LCD display screen: optional, as below
Project show:
Used in the hotel entrance (Outdoor)
Standard features
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
