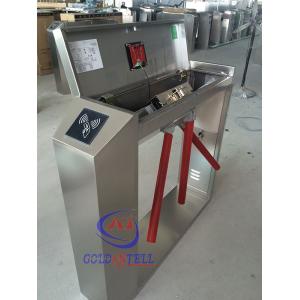

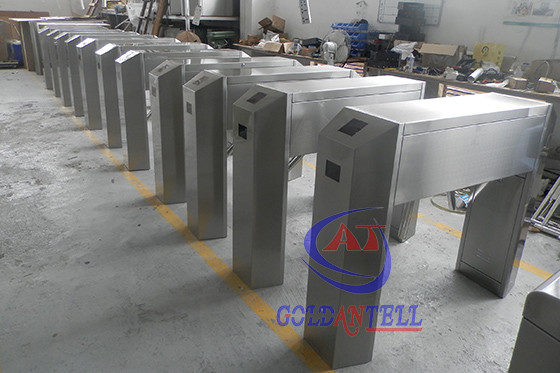

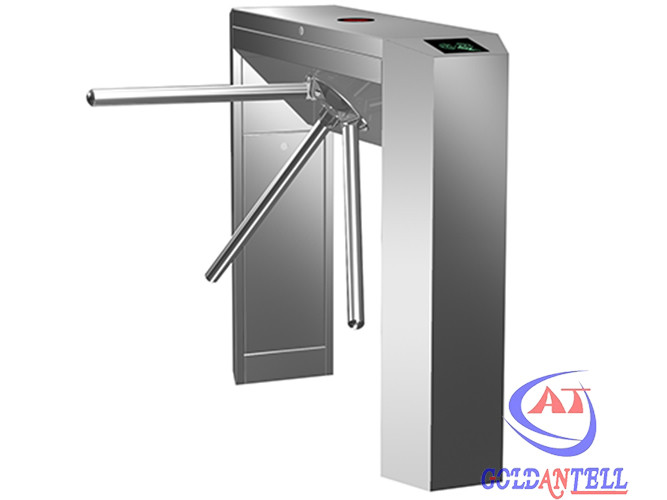

Bidirectional Pedestrian Tripod Turnstile Gate With Access Control
System / LED Indicator Lamp / Alarm Light
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores,
Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
3. Business Organizations:
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit
Attendance.
Specifications:
| Item Number | GAT-305
Full automatic
Semi-automatic
Manual |
| Technical Parameters |
| Housing material | domestic standard 304# stainless steel |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Description:
1. Standard features: Made of 304 /316 stainless steel,Goldantell
tripod turnstile with nice and elegant
shape, anti- rust,durable, Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a
passage,provide orderly passage to
people. Prevent illegal in and out.Arms off in emergency case.
3. Application place: This item is widely used in
station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
4. System Integration: This equipment is integrated with
mechanism,electric and micro- controller and
various kinds of identification technologies,compatible with
IC,ID,barcode,fingerprint reader and so on ,to
provide intelligent control and management to flow control.
5. Classification: 1) full automatic 2) semi-automatic 3) manual,
the semi-automatic is the most widely used.
Comparison of three kinds of tripod turnstiles:
| Tripod turnstile function & Features | Fully
automatic | Semi
automatic | Manual
operation |
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
| √ | × | × |
2. Turnstile can setting the working condition by press the button
of main control board.
| √ | √ | × |
3. Auto-lift-arm function: the arm can lift automatically with
alert
when the power is on again.
| Auto-lift-arm | manual-
lift –arm | NO action |
4. Auto-drop-arm function: the arm can drop down automatically
(default) (or free passing) when the power is off.
| Auto-
drop-arm | Auto-
drop-arm | NO action |
5. Automatic Reset Functions: after you swap the card, during
the specific time (the system is 10s), if you didn’t pass the
turnstile, the system will cancel your authority automatically to
pass the gate, (reset time is 1~60s you can adjust it what time
is suit for you).
| √ | √ | × |
6. The turnstile can work with door access control system/
consumption system
/biometric recognition system/ ESD system and so on.
| √ | √ | × |
7. Once an open signal is give, the arms will rotate
automatically to a certain angle,and prompt the
pedestrian to pass the gate.
| √ | √ | × |
8. LED indicator light
| √ | √ | × |
| 9. When pedestrian pass the turnstile, what should they do? | Automatic-rotation | manual
push the arm | manual
push the arm |
10. The turnstile is bidirectional (pedestrian can enter and
exit from one set of turnstile).
| √ | √ | × |
11. Can manager and long-range control the
turnstile directly by managing the computer.
| √ | √ | × |
| 12. LED counting function | √ | √ | × |
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within
1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti-
fingerprint/frosted finish / electroplating /
baking finish.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product
shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16
hours.
3. We can provide not only product, but also system software
management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a
video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by
fastest express,you no need bear
any fee.
System Integration:
1. we can offer the access control system: fingerprint recognition/
card reader / QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
