Automatic 5L Edible Oil Filling Machine With Screw Cap , Oil Bottle
Filling Machine
Quick Detail:
- Capacity: 2000 bottles per hour based on 5000ml bottles
- Filler and capper 2-in-1 monoblock
- Fully automatic, no bottle no filling, no cap machine will stop.
- CE, SGS certificate
- Designed power supply: AC/380V/50HZ/3PHASE
- Customizable
Description:
(1). The Automatic 5L Bottle Edible Oil Filling Machine is mainly
used in the edible oil filling operations in plastic bottles with
plastic screw caps. The two functions of bottle filling and capping
are composed in one monoblock. The whole process is full automatic.
The first rinsing machine is pure water rinsing machine, the bottle
will be cleared after the rinsing machine.
(2). The Automatic 5L Bottle Edible Oil Filling Machine is suitable for filling paste or oil product, such as ketchup, jam,
fruit and vegetable paste, cooking oil, honey, corn soup, peanut
paste, sauce. It also can be used for pulp, edible bird's nest,
aloe, rice wine and so on.
(3). Automatic 5L Bottle Edible Oil Filling Machine works stably, fills precisely, and suits for cold and hot filling.
The piston and piston barrel after the treatment of top technology
cooperate accurately, durable and wearable. It is equipped with
material stirring system, three point liquid level control,
frequency conversion adjustment, bottle in and out protection,
automatic speed adjustment, filling with bottle and no filling
without bottles. It adopts good stainless steel material, which
meet the requirement of food sanitation. Vacuum pump can make sure
there is no dripping oil on bottle body or machine surface, keep
the bottle and machine clean.
(4). The advanced MITSUBISHI/SIEMENS programmed controller (PLC) is
adopted to control the machine to run automatically while a
inverter is used in the bottle -entering chains to adjust speeds
and coordinated with the transducer of the main machine to make the
operations of moving bottle forward steadily and reliably.
(5). It is convenient to operate with higher automation because
every part of the machine is inspected to run with photo
electricity.
Application
This Automatic 5L Bottle Edible Oil Filling Machine can be used for filling edible oil into PET bottles with plastic
screw caps.
- Edible oil, sunflower oil, olive oil etc in 5L PET bottle
- Vegetable paste
- Pulp, honey, etc.
Specifications:
Model: | ZSS-YGF12-4 |
Capacity:5000ml(b/h) | 2000BPH |
Suitable Bottle Height(mm) | Customizable as per bottle sizes |
Suitable Bottle Body Diameter(mm) | Customizable as per bottle sizes |
Suitable Cap Shape | Plastic screw cap |
Power: (KW) | 4KW |
Filling Temperature: | Normal temperature |
Water Consumption for Washing Bottle(kg/hr) | - |
Gas Consumption(m3/min) | 100NL/min(5-6Kg/cm²)(take 100EA as the base) |
Size L×W×H (mm) | 2500x2100 x2200mm |
Total Weight:(kg) | 3000 |
Power Supply | 380V/50HZ |
Competitive Advantage:
- The two functions of filing and capping are composed in one body of
the machine.
- The whole process is automatic, no bottle no filling, no cap,
machine will stop.
- So this machine has three steps, first is filling, second is
sealing the bottle with plastic screw.
- Low power consumption, better material SUS 304/SUS 316.
- Small size, simple structure, run stable, low investment.
- Auto complete line, save labour cost.

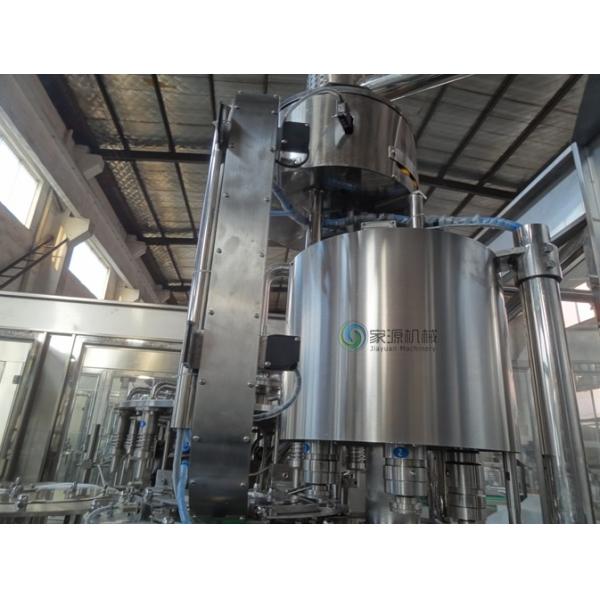

Photots
