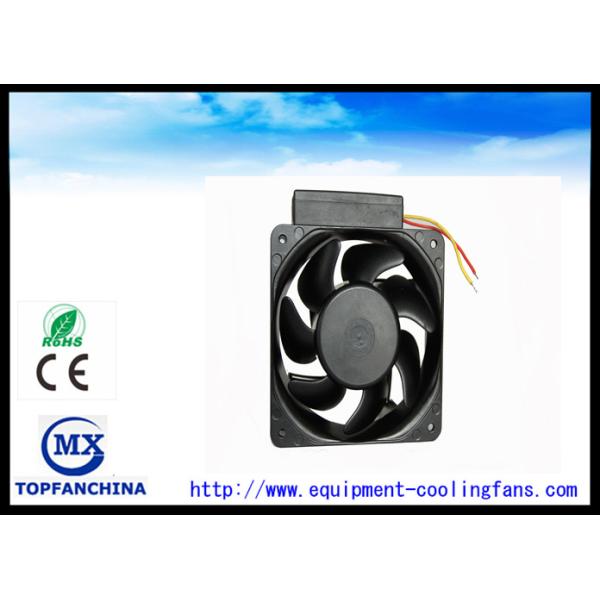

220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame

    Buy cheap 220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame from wholesalers

    Buy cheap 220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame from wholesalers
    • Buy cheap 220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame from wholesalers

    220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame

    Ask Lasest Price
    Brand Name : TOPFAN/ODM/OEM
    Model Number : MX16062ABH22
    Certification : CE/ROHS
    Price : US$10 -14
    Payment Terms : T/T, Western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

    220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame


    220 Volt AC Ventilation Brushless Cooling Fan With Aluminum Frame


    220V 160x160x62mm Equipment Cooling Fan, high air flow and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


    Description:


    • 220V AC FAN,used for cooling and ventilation.
    • Frame:Aluminum ADC-12,Painted Black
    • Impeller:Plastic With 7 Blades
    • Stator& Rotor:Silicon steel
    • Magnet Wires:Copper 1 PEW
    • Bobbin:PA-66 UL 94 V-0
    • Bearing Type:Ball Bearing

    Specification


    Model

    Bea

    ring Type

    Rated VoltageFreq.Current AmpInput PowerSpeedMax Air FlowMax Static PressureNoise LevelWeight
    Part No.S B YVDCHzAmpWattRPMCFMm3/minInch-H2OdB-Ag

    MX16062

    ABH11

    B110/12050/600.442

    2600/

    3000

    255/295

    7.20

    /8.30

    0.6/0.854/591200

    MX16062

    ABH22

    B220/24050/600.3642

    2600/

    3000

    255/295

    7.20

    /8.30

    0.6/0.854/591200

    Model

    MX16062ABH22

    Outline Dimension

    160x160x62mm

    Rated Voltage

    AC 220V

    Voltage Range

    AC 200V~240V

    Frequency

    50/60Hz

    Rated Current

    0.18/0.19A±10%

    Power Consumption

    35/40W±10%

    Speed

    2700/3000RPM±10%

    Max. Air flow

    255/295CFM±10%

    Max. Static Pressure

    0.60/0.80Inch-H2O

    Noise Level

    54/59dB(A)

    Weight

    1200g

    Dielectric Strength

    1800V/0.5mA/3s

    Temperature Test of Run

    t=<70K

    Locked Rotor Protection

    t=<130K

    Environmental Specification

    Operating Temperature:-20℃~85℃

    Operating Humidity:20%~85%RH

    Storage Temperature:-30℃~140℃

    Storage Humidity:20%~95%RH
