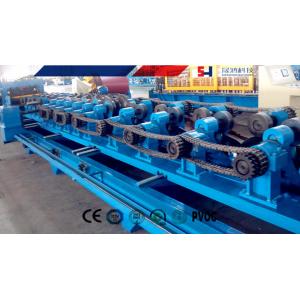

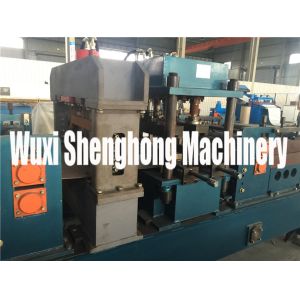

    Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SWL151209-12
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

    Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler


    1. Components of C Z Purlin Roll Forming Machine

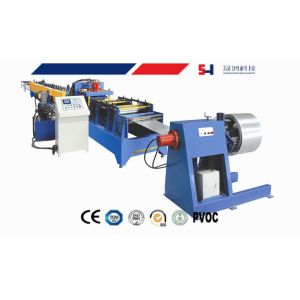

    The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.


    2. Technical Parameters

    Material specification

    galvalume, galvanized steel and carbon steel.

    Thickness

    1.0mm to 2.5mm.

    Main motor power

    15 kw.

    Hydraulic station power

    5.5 kw.

    Feeding width

    changeable.

    Cover width

    changeable.

    Yield stress

    235Mpa(33KSI) ~ 345Mpa (50KSI).

    Roll forming Speed

    12 m/minute.

    Cutting Tolerance

    +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

    Manual Uncoiler

    Max. Capacity: 3000kgs.

    Coil inner diameter

    508mm.

    Voltage

    As per customer’s request.

    Numbers of stands

    17 stands/stations/pairs.

    Type of cutting

    Roll-formed and length-set profile cutting.


    3. Material of Main Equipment

    Roller Material

    GCr15 bearing steel, with quenching treatment.

    Active Shaft Material

    High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.

    Electric Elements

    PLC control panel, transducer imported from Mitsubishi of Japan.
    Other elements are from famous suppliers of China.

    Cutter blades

    Cr12 mould steel with quenched treatment.


    4. Process sketch

    Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).

    5. Specification


    6. Series Design of Product


    Machinery Show


    Photos right preserve.
