About us :
Jinan Zhongwei is a leading ISO endorsed producer of high chrome
and forged Grinding Media Balls
Since 2010.

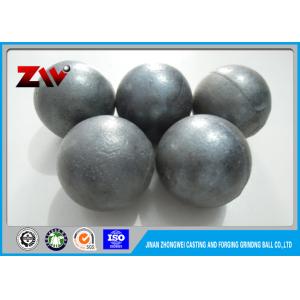

We mainly produce Forged Grinding media Balls,
Rolled Grinding media Balls and Cast Grinding media Balls as follows:
1). 60Mn Forged Grinding Balls and Rolled Grinding Balls (20mm to
180mm)
2). B2 Forged Grinding Balls and Rolled Grinding Balls (20mm to
180mm)
3). B3 Forged Grinding Balls and Rolled Grinding Balls (20mm to
180mm)
4). B4 Forged Grinding Balls and Rolled Grinding Balls (20mm to
180mm)
5). High chrome cast grinding ball (12.7mm to 120mm)
6) . Medium chrome cast grinding ball (12.7mm to 120mm)
7). Low chrome cast grinding ball (12.7mm to 120mm)
Why Jinan Zhongwei Grinding Media balls ?
Grinding Media Balls Applied Fields
1. Mining
2. Cement Plants
3. Chemical Industries
4. Power Stations
Physical Property of Forged Grinding Media balls
Model | Material | Impact Test Ak.J/cm² | Surface Hardness (Φ25mm- Φ60mm) | Core Hardness (Φ25mm- Φ60mm) | Surface Hardness (Φ70mm- Φ100mm) | Core Hardness (Φ70mm- Φ100mm) |
ZW-1 | 50Mn | ≥12 | ≥56 | ≥35 | ≥56 | ≥28 |
ZW-2 | 60Mn | ≥13 | ≥58 | ≥38 | ≥58 | ≥29 |
ZW-3 | 65Mn | ≥15 | ≥60 | ≥42 | ≥60 | ≥30 |
ZW-4 | B2 | ≥17 | ≥60 | ≥52 | ≥60 | ≥50 |
ZW-5 | 75SiMn | ≥16 | ≥60 | ≥50 | ≥60 | ≥48 |
Physical Property of Cast Grinding Media Balls
Model | BRAND | HARDNESS | IMPACT VALUE ak(J/cm2)
| METALLOGRAPHIC ORGANIZATION
|
|
|
|
|
|
|
| QUENCHING STATE(A) | NO- QUENCHING STATE(A) |
|
|
High Chromium Casting Ball
| ZQCr26 | ≥60 | ≥45 | ≥4.0 | M+C |
Packaging & Shipping
· Packing: Container bags or steel drums or others.
For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS
,Measurement 0.4CBM
For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS
,Measurement 0.3CBM .
Shipping and delivery
Port of loading:Qingdao Port,China
Delivery time : Normally 2-3 weeks after down payment received.
Partial shippment allowed
FAQ
· Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
· Samples : Free samples are provided for test before trial order
· MOQ : 1 Ton
For more information about our products ,Pls feel free to contact
us.
TEL: +86 15588873848
Contact : Jessise
