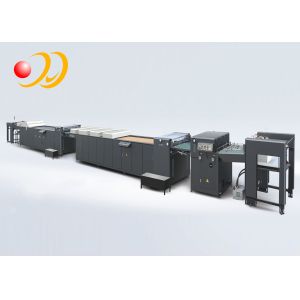

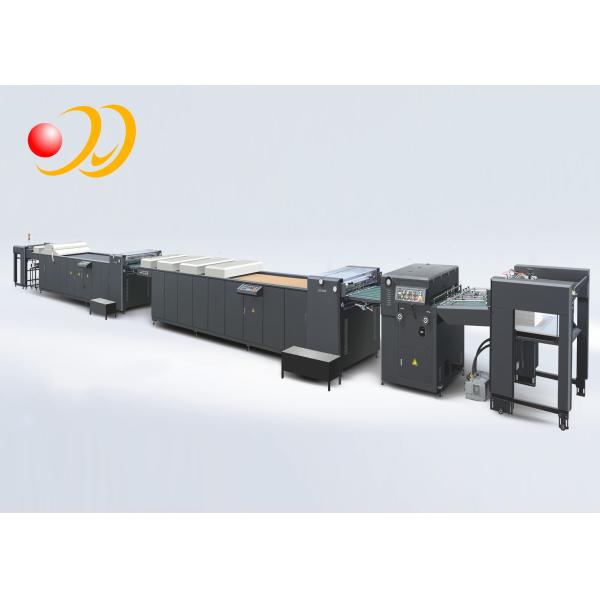

Coating Line UV Coater Machine , UV Varnish Coating Machine
Specifications :
Model | LSGZ-C-IR-UV740C-A | LSGZ-C-IR-UV1040 C-A | LSGZ-C-IR-UV1200C-A |
Max. paper size | 560x740mm (22"x29.1") | 920x1040mm (36.2"x40.9") | 920x1200mm (36.2"x47.2") |
Min. paper size | 280x400mm (11"x15.7") | 307x440mm (12"x17.3") | 307x440mm (12"x17.3") |
Max. speed | 7000 sph | 7000 sph | 7000 sph |
No. x UV power | 3x6.5kw | 3x9.75kw | 3x9.75kw |
No. x IR power | 27x1kw | 27x1.5kw | 27x1.8kw |
Weight | 6.2t | 6.5t | 6.6t |
Overall dimensions | 21600x1450x1820mm | 21600x1750x1820mm | 21600x1800x1820mm |
Total electric consumption | 68kw | 84kw | 96kw |
Introduction:
This machine is used for coating on the surface of paper, which
raises its brightness and plays a role of damp-proof and
abrasion-resistance so as to protect colors on the surface of
paper. It is suitable for both light paper and thick paper.
● Feeder, powder-removing, ground coating/IR drying, UV coating/UV
curing, delivery can be combined according to your requirements.
● The conveyor can be lengthened. There are two-meter and
four-meter extension for your option.
Performance And Charcteristics:
1. Automatic feeding section
High-speed stable feeder free from maintenance.
Options: movable guide rail, manual feeding table for paper size
feeder could not handle.
2. Powder-removing section
Adopt flannel roller and heating roller double way to clean the
powder on paper surface and increase the coating effects,
convenient adjustment and operation.
3. Grounding coating / IR drying section
This section is used for water-based varnish before UV coating to
fill with small holes on paper surface to save UV varnish.
4. Infrared hot air drying / cooling fan Ministry
The unique design of hot-wind drying make water-based coating
drying faster and more purely.
5. UV coating / UV curing section
Adopt reverse roller and speed regulating to control varnish
thickness, automatic stop for paper jam to reduce sheets to be
wasted.
6. UV curing
This section is composed of lamps, reflectors, air cooling and
exhausting systems. Sheets coated by UV varnish will be dried here.
7. Automatic delivery section
Jogging times can be set according to paper weight. Pneumatic
joggers keep sheets delivered orderly. Equip with counter for
coated sheets, pre-delivery table which will be automatically open
when paper jam in delivery.
8. Machine PLC control, man-machine dialogue.
● Air knife system for light paper more than 80gsm is optional.
