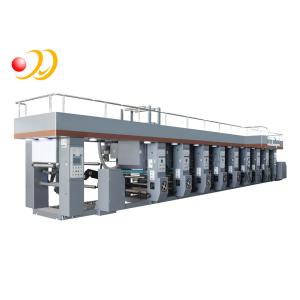

Gravure Printing Machine , Rotogravure Printing Press 600mm
Printing Width
Specifications :
Model | AY600A | AY800A | AY1100A |
Printing width | 600mm | 800mm | 1100mm |
Printing speed | Max50m/min | Max50m/min | Max50m/min |
Print cyl. dia. | Ф90-300mm | Ф90-300mm | Ф90-300mm |
Rolling material dia. | Ф600mm | Ф600mm | Ф600mm |
Print cyl. cross adjustable | 30mm | 30mm | 30mm |
Print. cyl. longitudinal Adjustable | 360° | 360° | 360° |
Registering accuracy | ±0.2mm | ±0.2mm | ±0.2mm |
Total power | 37kw | 48kw | 57kw |
Weight | 4350kg | 4850kg | 5350kg |
Overalldimensions (L×W×H)mm | 9300×1980×2400 | 9300×2180×2400 | 9300×2480×2400 |
Introduction:
(1) Usage: It is suitable for BOPP, PET, CPP, PVCD and combined
film and paper with the same properties. Its printing speed is
50m/min, while the mechanical speed is 60m/min.
(2) The main transmission system adopts speed-adjusting motor to
control the speed polelessly.
(3) It can realize printing in single-side,
dual-side,multi-colors,and has the function of meter counting. (4)
The material receiving,the traction of material receiving and
feeding adopt moment motor, while material feeding adopts magnetic
powder braker.
(5)The ink circulates automatically with the ink pump.
(6) The dry system adopts dual oven tunnel. The up-and-down oven of
each printing unit adopts centrifugal blower to bring in the air.
It is of cast iron chassis and to dry the materials 50m per minute.
The temperature of oven can be adjusted and controlled
automatically.
(7) The position of ink scraper can be adjusted freely up and
down,pre and post. And it adopts horizontal movement repeatedly.
(8)The material receiving and material feeding device adopt
reversal dual station to realize feeding and receiving materials
without stopping the machine.
(9) The rubber roller adopts manual pressure.
(10) Printing cylinder correcting adopts differential transmission
device. The printing cylinder can be adjusted in 360 degrees
vertically freely. Its horizontal adjustment scope is 30mm.
