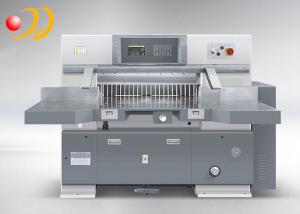

Semi Automatic Paper Cutting Machine High Precision With Hydraulic
Pump
Specifications :
MODEL | QZ-92CT KD |
Cutting argment width | 92cm |
Max.cutting height
(Without auxiliary panel ) | 12cm |
Max.cutting length | 92cm |
Main motor power | 3kw |
Fore-length of working table | 69cm |
Height of working table | 90cm |
Width of machine
(side working table included) | 212cm |
Width of machine
(without side working table) | 198cm |
Cutting speed | 45tims/min |
Max.clamp pressure | 3500dan |
Min.clamp pressure | 150dan |
Knife thickness | 1.27cm |
Grinding reserve | 3cm |
Voltage | 361-339v |
Gross weight | 2400kg |
Overall dimensions (L-W-H) | 232× 142 × 185cm |
Introduction:
QZ-92CT KD meet with national industry standards paper cutter
design and production, equip with LED display. Easy to learn
operating system and shorycut keys which is also easy to
understand.TAIWAN high-precision slotless double-rail push the
paper structurre, positioning accuracy 0.01mm. Mechatronics use ABB
control device, equip with automatic knife changing assistant
function. German design of pressure hudraulic system, turbine
transmission structure.
THE MAIN CONFIGULATION:
turbine | roller ball lead screw | servo motor |
10.4 inch touch screen computer | double guide rail |
|
THE SYSTEM OF COMPUTER:
1. The displaying panel use 10.4inch, you can adjust the color by
yourself.
2. They have the high quality colors(25600), their storage can
reach 170 groups, every group have 250 cut, Its storage time can
reach 300,000 hours.
3. The multi-language operating interface, such as
Chinese,English,Spanish...
4. It has luminous shortcut key so as to ensure the high stability.
THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA .
3. Air pump is from TAIWAN HOUBANG.
THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: ABBA
2. Double rail guide way: ABBA
THE HYDRAULIC SYSTEM:
1. Adjustable-pressure single-hydraulic system(paper pressing by
the hydraumatic),
2. combined valve from German, ISO approved hydraulic units.
THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai
Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity
protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock, safety bolting, the safety button and light grid.
7. The driving cutting part uses worm.
