| Brand Name : | LINK-PP |
| Model Number : | HR911205C |
| Certification : | ISO9001,SGS,UL,CE,REACH163 |
| Price : | $0.11-$12 |
| Payment Terms : | TT,NET30/60/90 Days |
| Supply Ability : | 208K/Month |
| Delivery Time : | Stock |
Hanrun HR911205C | ||||||||||||||||||||||||||||||||
Designed Part Number | HR911205C |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Made in China | SM-LPJ26204AENL | |||||||||||||||||||||||||||||||
Manufacturer | LINK-PP China | |||||||||||||||||||||||||||||||
Description | Dual Magnetics Rj45 Connector | |||||||||||||||||||||||||||||||
Documents Available | PDF/3D/Step/IGS/Price/Cross | |||||||||||||||||||||||||||||||
Quantity Available | 2,000 PCS or 4 weeks | |||||||||||||||||||||||||||||||

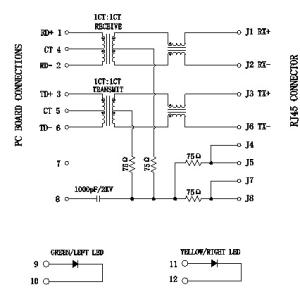

HR911205C ELECTRICAL SPECFICATIONS @25℃
Electrical Specifications: @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Return Loss(dB Min):
1-10MHz:-18 30MHz:-16
60-100MHz:-12
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz:-1.2dB Max
5.CMR:
1-50MHz:-30dB Min
50-130MHz:-20dB Min
7.Isolation Voltage:1500V
8.Operating Temperature:0-70℃/-40℃~ +85℃.

|
