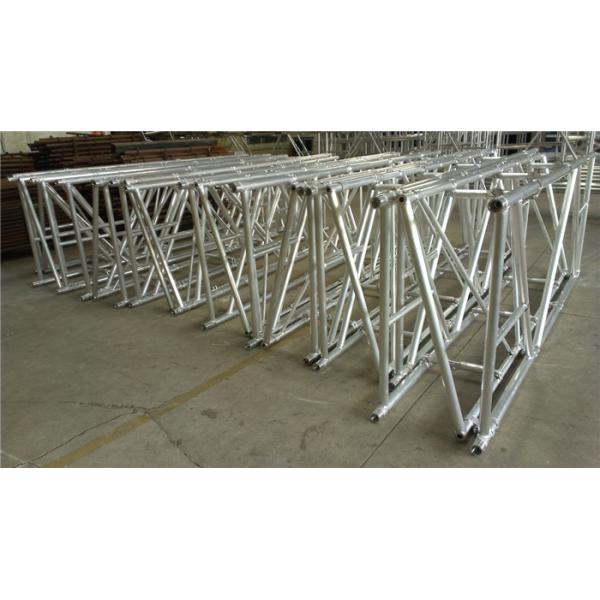

520x950 mm Foldable Aluminum Truss Triangle 1055kg - 1898kg Loading
Weight
Product Description
1) Folding Truss is a highly versatile and cost effective trussing
system. It is a triangular truss and, as its name suggests, folds
together to a flat width of 100mm (4"). This saves on storage space
and transportation costs making it extremely cost effective.
Folding Truss is manufactured from high-grade 6082-T6 aluminium
alloy.
The locking and folding mechanism is very simple and easy to use,
with no loose or additional parts to lose or misplace.
2) Folding truss is completely compatible with Slick Maxi Beam
truss, with the simple addition of two extra lugs on each face of
Maxi corner and sleeve block, (a standard option), as it uses the
same fork end fitting joints and main tube diameter and is the same
overall size. This means that you can inter-mix straight runs of
truss to optimise your design.
3) Folding truss comes in standard lengths of 1M and 2M the same as
Beam.
4) Along with using standard Beam corners with folding truss
fittings we also offer Folding truss only variants of horizontal
corner blocks.
Product's Material
| Material | 6082 Aluminum |
| Color | Silver, Black, Red, Green or Customized |
| Standard | TUV, ISO9001 |
| Shape | Square,Triangle |
Specification
FT60120 Aluminum square folding truss
- Truss size : 600x1200mm
- Material of folded part: A380
- Main tube : Diameter Ø50mm, Thickness 4mm
- Joint : Diameter Ø60mm spigot
- Standpipe : Diameter Ø30mm, Thickness 2mm
- The largest safety loading : 1100-2800kgs
- Max Span : 20m
Type: Spigot
Shape: Triangle or Square
Color: Silver or customized
Certification: TUV,ISO9001
Length available: 0.5m—4m
Package: Carton
Other Item Truss for reference
Truss Shape | Connection Type | Specification of Size/mm | Joint |
Square | Spigot | 600x1200 | Ø 60mm Spigot |
Triangle | Spigot | 520x470 | Ø 60mm Spigot |
Triangle | Spigot | 520x950 | Ø 60mm Spigot |
1) FT5247 Aluminum triangle folding truss
Truss size : 520x470mm
Material of folded part: A380
Main tube : Diameter Ø50mm, Thickness 4mm
Joint : Diameter Ø60mm spigot
Standpipe : Diameter Ø30mm, Thickness 2mm
The largest safety loading : 1179-2809kgs
Max Span : 20m
2) FT5295 Aluminum triangle folding truss
- Truss size : 520x950mm
- Material of folded part: A380
- Main tube : Diameter Ø50mm, Thickness 4mm
- Joint : Diameter Ø60mm spigot
- Standpipe : Diameter Ø30mm, Thickness 2mm
- The largest safety loading : 1055-1898kgs
- Max Span : 36m
Features
• Portable folding truss system designed to enhance any mobile set
up at any size venue
• Quick and easy set up and tear down with pre-labeled connections
and quick release pins
• Enhances durability and corrosion resistance with aluminum
construction
• Holds up to 1000-2800KG (evenly distributed) when fully assembled
• Designed to LEDIKA COMPANY
• Match any setup with selectable height options
Pictures
Application
- Performing Arts Stage Equipment
- Exhibition Truss Equipment
- Mechanical Stage Design
- Entertainment Equipment Rental Services
- Project Design and Installation
Product Advantages
1. Aluminium material-durable and absolutely environmental
friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design
for your special request.
5. Favorable price-with competitive price under the assurance of
quality.
Other Information of Product
- Warranty: 2 Years
- Sample: Depends on the quantity of order.
- Design: Any designs can be customized.
Type of Trading
| Payment Terms | T/T, L/C, Western Union |
| Payment | 50% TT in davance, the balance should be against before shipment |
| Delivery | 15-20 working days after receive your deposit |
| Loading Port | Guangzhou / Shenzhen |
Company profile:
LEDIKA is a professional manufacturer in stage equipment in Panyu,
Guangzhou, Guangdong, China.
Through 15 years development, we are becoming an integrative
company on aluminum truss, layer truss, LED lighting, stage and
flight case, professionally in studying, designing, producing,
renting and mounting together.
"LEDIKA"approached its brand and own its wide market. We
participated in the builder of 2007 Special Olympics Games Opening
Ceremony,2008 Beijing Olympics Games, 2010 the 16th Asian Games.
Honesty, humanist and innovation are our base to develop.
