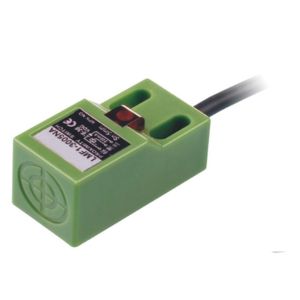

    Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LMF1
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

    Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
    Technique parameter
    DETECTION DISTANCE 5MM
    FlushDC 10-30VNPNNOLMF1-3005NA
    NCLMF1-3005NB
    NO+NC
    PNPNOLMF1-3005PA
    NCLMF1-3005PB
    NO+NC
    two wire systemNOLMF1-3005LA
    NCLMF1-3005LB
    AC 90-250VSCR Control-lable siliconNO
    NC
    NO+NC
    Relay output
    DETECTION DISTANCE 5MM
    Non-FlushDC 10-30VNPNNO
    NC
    NO+NC
    PNPNO
    NC
    NO+NC
    two wire systemNO
    NC
    AC 90-250VSCR Control-lable siliconNOLMF1-2005A
    NCLMF1-2005B
    NO+NC
    Relay output
    ControloutputDC200mA
    SCR/ Relay300mA
    Output voltagc dropDC/ACNPN/PNP< 3V, Two wire< 3.9V, AC< 10V
    Consumption currentDC< 15mA, AC< 10mA
    Standard detected object20*20*1(A3 iron)
    Repeated precision0.02
    DC/AC400HZ/25HZ
    Working environment temperature-25~+70º C
    Insulation resistance50MΩ
    Shell materialABS Resin
    Protection gradeIP67
    Altemative model at home and abroadSN04-N

    Features:
    1 . Compact volume
    2 . high precision of repeated location
    3 . Diversified exterior structures
    4 . Good performance of anti-interference
    5 . Many output forms
    6 . Dust proof,vibration proof,water proof and oil proof.
    7 . With short-circuit protection and inverted connecting protection.
    8 . Long service life

    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01:1mm 05:5mm 10:10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Inspection of the exiating of milk inside the paper package

    5. Spacing detection


    Dimension



    Product Picture


    Why choose us:


    1. Quality guaranteed:

    Special supervision team to control quality

    All the products will be inspected carefully before delivery


    2. quality and finish time guaranteed, Deliver the goods accredit to negotiation or within 7 days after we get your payment.


    3. Competitive price with high quality.


    4. After service guarantee. Assure you the best services at all times.

    5. OEM & ODM available; Large quantities of the same specifications, quality standards, the time control is our strength.


    6. Favorable and professional shipping,Worldwide shipping available
