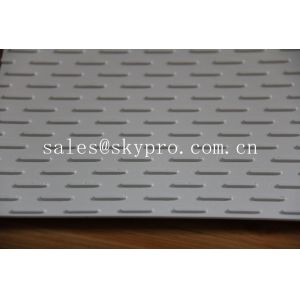

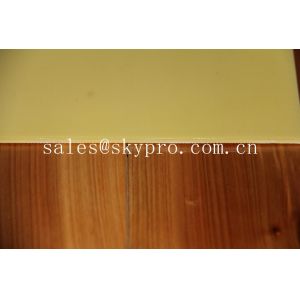

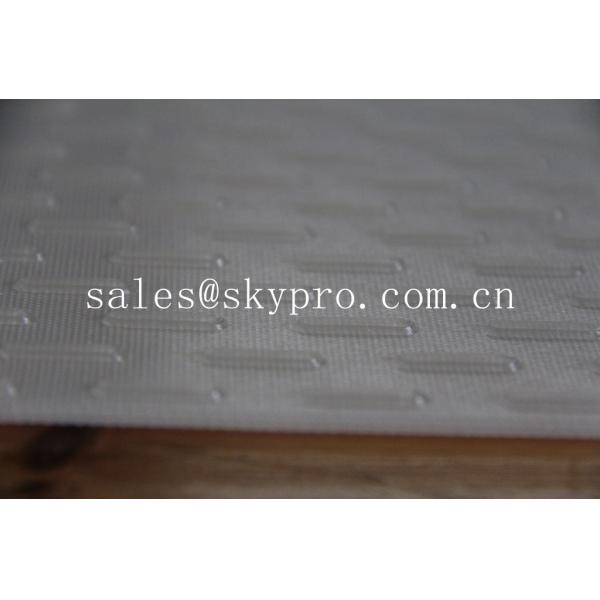

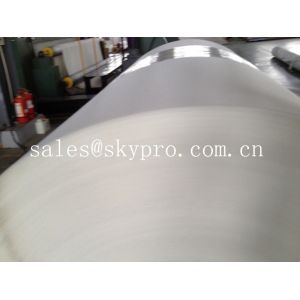

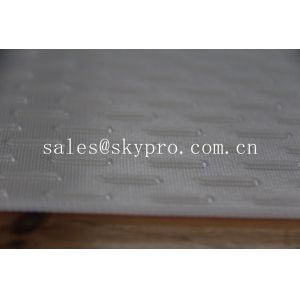

The light transmission belt we produced for tobacco industry is
odorless and nonpoisonous, oil-resistant, anti-corrosive, high
tensile strength. The material is made of PVC,PU,PE,TPE and double
sided canvas. We can also produce customized parts such like
guiding bar, preventing and skirting belt, wheel machine belt,
turning machine belt, lifting machine belt. such products are
specially designed for meeting special requests of tobacco
manufacturing industry. To solve the pollution problem, we use
odorless and nonhazardous PE polymer for processing transmission
belt which features environmental friendly, non-toxic , easily
washable, and tobacco contactable, high tensile strength, good
flexibility, and become the best option for equipment of tobacco
industry.
Technical Data:
Model: SP12-04A
Total thickness:1.0mm
Top coating thickness:0.5mm
Color: transparent, natural color
Weight:1.1kg/m2
Tensile force for 1% elongation:6N/mm
Top hardness:75 Shore A
Minimum pulley diameter:10mm
Maximum production width: 3000mm
Model: SP22-07B
Total thickness:1.3mm
Color: transparent, natural color
Weight:1.3kg/m2
Tensile force for 1% elongation:8N/mm
Minimum pulley diameter:20mm
Maximum production width: 3000mm
Model: SP25-05
Total thickness:2.0mm
Top coating thickness:0.5mm
Color: transparent, natural color
Weight:2.3kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:75 Shore A
Minimum pulley diameter:60mm
Maximum production width: 3000mm
Model: SP22-06C
Total thickness:5.5mm
Top coating thickness:2.8mm
Color: transparent ,natural color
Weight:5.2kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:75 Shore A
Minimum pulley diameter:100mm
Maximum production width: 2000mm
Model: SP22-06T
Total thickness:5.5mm
Top coating thickness:3.5mm
Color: transparent, natural color
Weight:4.4kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:75 Shore A
Minimum pulley diameter:80mm
Maximum production width: 2000mm
Model: SP22-06/6
Total thickness:4.8mm
Top coating thickness:2.8mm
Color: transparent, natural color
Weight:4.3kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:75 Shore A
Minimum pulley diameter:80mm
Maximum production width: 2000mm
Model: SP32-14A
Total thickness:4.0mm
Top coating thickness:1.0mm
Color: green
Weight:4.5kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:75 Shore A
Minimum pulley diameter:80mm
Maximum production width: 3000mm
Model: SE20-05
Total thickness:3.0mm
Top coating thickness:1.0mm
Color: transparent, natural color
Weight:2.8kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:80 Shore A
Minimum pulley diameter:80mm
Maximum production width: 2600mm
Model: ST12-09B
Total thickness:2.0mm
Top coating thickness:0.5mm
Color: deep aquamarine
Weight:2.3kg/m2
Tensile force for 1% elongation:6N/mm
Top hardness:90 Shore A
Minimum pulley diameter:10mm
Maximum production width: 2000mm
Model: ST22-04B
Total thickness:1.5mm
Top coating thickness:0.5mm
Color: transparent, natural color
Weight:1.8kg/m2
Tensile force for 1% elongation:8N/mm
Top hardness:90 Shore A
Minimum pulley diameter:20mm
Maximum production width: 3000mm
Model: SPM120
Total thickness:3.1mm
Top coating thickness:1.0mm
Color: transparent, natural color
Weight:2.8kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:90 Shore A
Minimum pulley diameter:60mm
Maximum production width: 2000mm
Model: ST22-06/27
Total thickness:3.5mm
Top coating thickness:1.0mm
Color: transparent, natural color
Weight:4.0kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:90 Shore A
Minimum pulley diameter:60mm
Maximum production width: 2000mm
Model: SU2-2
Total thickness:1.4mm
Top coating thickness:0.4mm
Color: white
Weight:1.5kg/m2
Tensile force for 1% elongation:10N/mm
Top hardness:85 Shore A
Minimum pulley diameter:20mm
Maximum production width: 2600mm
Model: SM8E
Total thickness:1.8mm
Top coating thickness:0.8mm
Color: white
Weight:1.5kg/m2
Tensile force for 1% elongation:3N/mm
Top hardness:90 Shore A
Minimum pulley diameter:20mm
Maximum production width: 2000mm
Model: SU12-24B
Total thickness:0.8mm
Top coating thickness:0.3mm
Color: white
Weight:1.0kg/m2
Tensile force for 1% elongation:5N/mm
Top hardness:85 Shore A
Minimum pulley diameter:10mm
Maximum production width: 3000mm
Model: SP42-14
Total thickness:5.0mm
Top coating thickness:1.0mm
Color: green
Weight:7.0kg/m2
Tensile force for 1% elongation:16N/mm
Top hardness:75 Shore A
Minimum pulley diameter:150mm
Maximum production width: 3000mm
