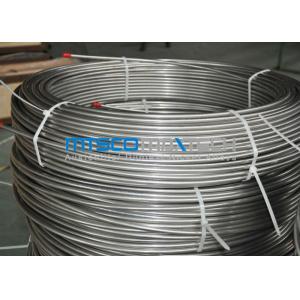

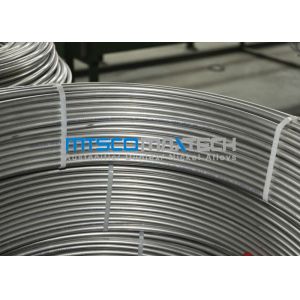

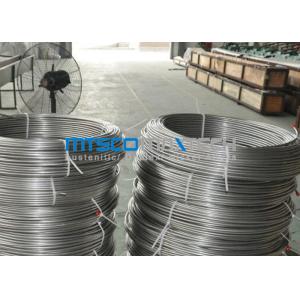

ASTM A269 TP304 Stainless Steel Coiled Tubing Size 6.35mm x 1.65mm x 150m / coil

Name: ASTM A269 TP304 Stainless Steel Coiled Tubing Size 635mm x 165mm x 150m coil
Brand: MTSCO
Price: 5500 USD

Ask Lasest Price
Brand Name :	MTSCO
Model Number :	MTSCOSSCT07
Certification :	ISO 9001 & PED
Price :	5500-10000USD/TON
Payment Terms :	T / T ; L / C
Supply Ability :	300 Tons / Month
Delivery Time :	30 Days

Add to Cart

Product Details
Company Profile

ASTM A269 TP304 Stainless Steel Coiled Tubing Size 6.35mm x 1.65mm x 150m / coil

ASTM A269 TP304 Stainless Steel Coiled Tubing Size 6.35mm x 1.65mm x 150m / coil

Where the coiled tubing used ?

1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line

Material	Heat treatment	Temperure F (C) Min.	Hardness
Material	Heat treatment	Temperure F (C) Min.	Brinell	Rockwell
TP304	Solution	1900 (1040)	192HBW/200HV	90HRB
TP304L	Solution	1900 (1040)	192HBW/200HV	90HRB
TP316	Solution	1900(1040)	192HBW/200HV	90HRB
TP316L	Solution	1900(1040)	192HBW/200HV	90HRB
TP321	Solution	1900(1040) F	192HBW/200HV	90HRB
TP347	Solution	1900(1040)	192HBW/200HV	90HRB
OD, inch	OD Tolerance inch(mm)	WT Tolerance %	Length Tolernace inch(mm)
OD, inch	OD Tolerance inch(mm)	WT Tolerance %	+	-
≤ 1 / 2	± 0.005 ( 0.13 )	± 15	1 / 8 ( 3.2 )	0
> 1 / 2 ~1 1 / 2	± 0.005(0.13)	± 10	1 / 8 (3.2)	0
> 1 1 / 2 ~< 3 1 / 2	± 0.010(0.25)	± 10	3 / 16 (4.8)	0
> 3 1 / 2 ~< 5 1 / 2	± 0.015(0.38)	± 10	3 / 16 (4.8)	0
> 5 1 / 2 ~< 8	± 0.030(0.76)	± 10	3 / 16 (4.8)	0
8~< 12	± 0.040(1.01)	± 10	3 / 16 (4.8)	0
12~< 14	± 0.050(1.26)	± 10	3 / 16 (4.8)	0

ASTM A269 Standard
Elements	TP304 ( S30400 )
(C) Carbon, max :	0.08
(Mn) Manganese, max :	2
(P) Phosphorus, max :	0.045
(S) Sulfur, max :	0.03
(Si) Silicon, max :	1
(Ni) Nickel :	8.0 - 11.0
(Cr) Chromium :	18.0 - 20.0
(Mo) Molybdenum :	…
(Fe) Iron :	…
(Cu) Copper :	…
(N) Nitrogen :	…

MTSCO is a leading manufacturer who is specialized in seamless coiled tubing produce . Stainless steel seamless coiled tubing final surface is bright annealed. According to standard very strictly, tubes which produced by us always have correct OD and WT tolerance. They are very popular in military, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc. They can be used in many others industries also .
