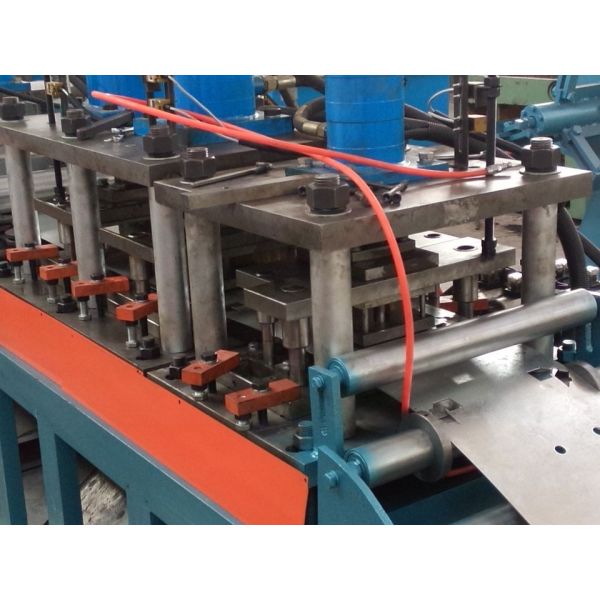

    16 stations Froming Stage Galvanized Steel Fire Damper Roll Forming Machine Frame thickness 1.5-2.0mm

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SS-FD
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 65-75 working days after deposit
    • Product Details
    • Company Profile

    16 stations Froming Stage Galvanized Steel Fire Damper Roll Forming Machine Frame thickness 1.5-2.0mm

    Steel Fire Damper Roll Forming Machine


    Technical Parameter

    1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
    2. Transmission way: single chain
    3. Transmission material: 45# steel, high frequency quenching
    4. Material of blad: Cr12, quenching treatment
    5. Capacity of Decoiler: 3 ton passive decoiler
    6. Forming Speed: 8-10m/min
    7. Roller Groups: about 16 stations
    8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
    9. Feeding material: galvanized steel
    10. Principal Axis: 45# high grade steel with quenching treatment
    11. Main motor power:11 Kw




    Main Components


    S.N


    Equipment name


    Quantity

    1.

    5T passive un-coiler

    1 set
    2.

    Main roll forming machine


    1 set
    3.

    Hydraulic cutting

    1 set
    4.

    Control system (including control box)

    1 set
    5.

    Punching

    2 sets
















    Advantage for Fire Damper

    1. Reasonable Price
    2. High Quality
    3. 12 Months Warranty
    4. More Than 10 Years Experience
    5. Durable
    6. Reliable


    During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
    We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.





    Working Flow of Fire Damper

    A.Passive Decoiler..........................................................To load and uncoiling material
    (We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

    B.Servo Feeding Applicator............................................To feed the material accurately

    C.Hydraulic/Press Punching...........................................To punch as requirements

    D.Roll Forming Unit.........................................................To roll form as requirements

    E.Hydraulic Cutting.........................................................To cut sheets as desired length
    (We also have non-stop hydraulic cutting system.)

    F.Output Table................................................................Support the finished products


    Decoiler--Feeding with guide--Straightening device--Main roll forming machine--Curving--Out put table

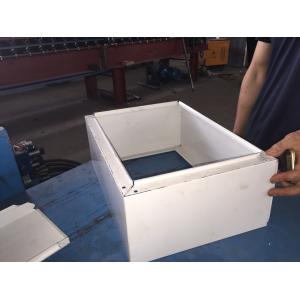

    Profiles of Fire Damper


    Best price fire damper roll forming machine


    Best price fire damper roll forming machine


    Best price fire damper roll forming machine

    Loading pictures


    High quality metal deck floor sheet roll forming machine


    After-sale Serive

    - The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
    - Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
    - Training time: 5 days.
    - Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
    -The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)


    Company Profile


    Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

    of roll forming machine.

    The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

    Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

    are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

    construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

    steel production enterprises' growing demands.

    Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
