Lace welding equipment by Ultrasonic 20 kHz
Description:

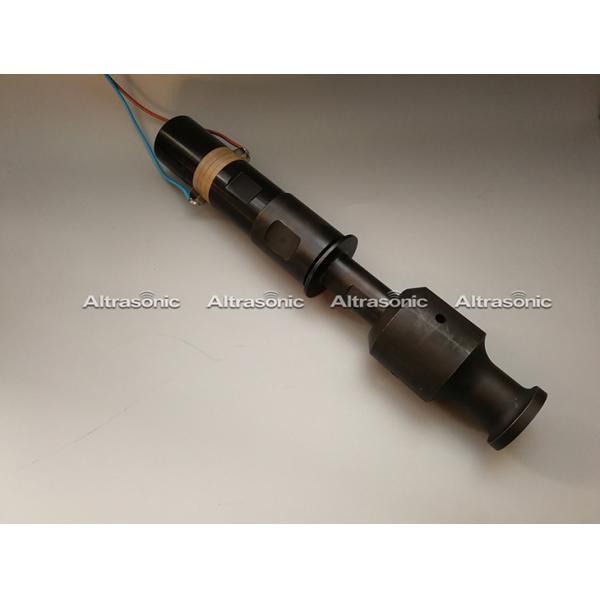

The HS-WL20 ultrasonic welder horn is suitable for ultrasonic lace
sewing machine. Ultrasonic lace sewing machine, is an efficient
sewing, embossing equipment. Mainly used in the hem of the
synthetic fiber cloth, welding, cutting, embossing, processing
products with good water tightness, high production efficiency,
without needlework accessories, melted smooth surface without
burrs, feel good and so on.
Widely used in clothing, toys, food, environmentally friendly
non-woven bags, masks and other industries.
Ultrasonic lace sewing machine, using the latest ultrasonic
technology, widely used world famous components, with advanced
technology, reasonable structure, reliable operation, easy
operation and so on.
Technical Parameters:
| Item No | HS-WL20 |
| Frequency | 20Khz |
| Power | 2000W |
| Voltage | 200-240V, Alternating current |
| 50-60hz, Single phase |
| Electric current | 15A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Weight | 25Kgs |
Ultrasonic Welding Principle:
When ultrasonic effects on the contact area of thermoplastic
plastic, it will produce tens of thousands times per second
high-frequency vibration. This the high-frequency vibration
achieves a certain amplitude, and passes the ultrasonic energy to
the welding area through the welding pieces.
The welding time and welding horn pressure can be adjusted. The
amplitude depends on transducer and booster. The three factors of
interaction have a suitable value, if the energy exceeds the
appropriate value, the plastic melting amount will be large, easy
to deformation of welding; if the energy is small, it is not easy
to solder, the pressure can not be too much. This optimum pressure
is the product of the length of the welded part and the edge of the
optimum pressure per 1mm.
Equipment applicable materials
Chemical fiber cloth, or chemical fiber blended fabric, chemical
film is also more than 30% of woven, can be processed into the
desired products, such as Nylon cloth, knitted fabrics, non-woven
fabrics, T / R cloth, Trinidad and Tobago Cloth (Polyester cloth),
glitter cloth, multi-layer cloth, as well as a variety of
lamination film made of film covering film can be applied.
Equipment use function
(1) sealing, (2) pattern cutting,(3) cutting, (4) slitting, (5)
cutting holes, (6) pressing graphics, (7) forming, (8) printing
colors, Bronzing, (10) Flap and print, (11) welding metal wire
fixed.
Applicable products
(1) Clothes lace (2) Bed cover (3) Pillow cover (4) Car cover (5)
Tentage (6) Packaging tapes (9) Raincoat, Windbreaker, Snow Jacket,
(10) Toys, (11) Gloves, (12) Tablecloths, (13) Chair covers, (17)
Accessories, (18) Umbrellas, (19) Lampshades, (20) Filters and
more.
Equipment function
(1) The use of ultrasonic vibration and special steel wheel,
pressurized, you can get the use of the above functions.
(2) Processing does not smoke, sparks, does not hurt the edges of
cloth, but also to avoid burrs.
(3) The change of the flower wheel is simple and convenient, the
flower wheel of various figures can be changed according to the
customer's need.
(4) No preheating during manufacture and continuous operation.
(5) Can be installed color paper, gold foil, up to India when
pressure, bronzing function.
(6) can be more than one unit into a special machine, in order to
complete a larger width of the product, such as quilt cover,
umbrella and so on.
(7) Special alloy steel wheel made of material, and by special heat
