96Kg Ultrasonic Frequency Generator , Industrial Power Supply PC
Controlled
Description:
During the past half year, with many effort from the research
development section of our company, at present we have successfully
promote the intelligent card welding equipment substantially. After
promotion, comparison with the former one, the properties of the
equipment has been promoted highly, more stability, better in
search the frequency at more wide range, and much better
appearance. On the process using the former 60K equipment, with the
damage of the welding horn, the frequency would be altered.(the
frequency is decided by the size of the product).When the frequency
is altered to a certain degree, the ultrasonic generator would be
difficult to coincide with the frequency, then influencing to the
normal running of all the ultrasonic system.
Applications:

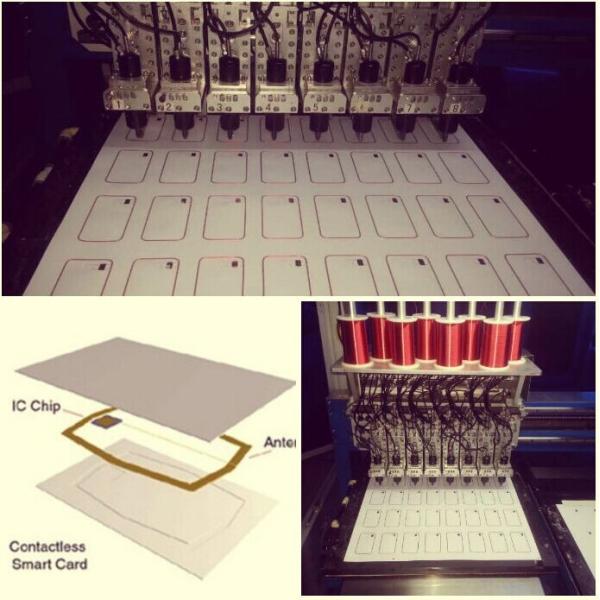

The equipment is used for the coil embedded in a smart card. Automation , 8 in 1 ultrasonic embedding units , smart card
welding , drive 8 ultrasonic horns at the same time.
Specifications:
Model | HS-UIC-C | Frequency | 60Khz | Output power | 2000watt | Frequency tuning method | Auto tuning | Automatic frequency adjustment range | ±2 | Power adjustable | 30%-99% | Frequency adjustable | 10%-99% | Net weight | 96kgs | Voltage | AC220-250V |
|
Competitive Advantage:
1. High stability: All-digital integrated circuits, use of US
imports of processors interference, simplify the hardware
structure, improving the reliability of the system.
2. Automatic frequency tracking.
3. Strong output: The use of IGBT power modules plus his excited
oscillation circuit structure, the output power is more than 1.5
times that of conventional self-excited circuit.
4. Amplitude stepless adjustment: Amplitude setting range from 10%
to 100%.
5. Intelligent three protection and fault alarm: Die-current
protection, frequency offset protection, total output is too large
to protect. Equipment failure, the generator will stop working, and
make the appropriate cause of function prompts until technician
troubleshooting.
6. Intelligent closed-loop amplitude control technology to achieve
the amplitude adjustment, independent of input supply voltage and
load fluctuations affect the amplitude of the output remains
constant.
7. Two kinds of welding mode: switch back and forth, so that a higher
precision welding, soldering and better results.
Comparison:
| Analog generator | Digital generator |
Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
Automatic search | × | ● |
Automatic frequency tracking | × | ● |
Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
Power regulation | × | ● |
24 hours of continuous work | × | ● |
Non resonant condition | × | ● |
LCD | × | ● |
Add the PLC protocol | × | ● |
Automatic circuit protection | Bad, easy to cause the damage of components | Good |
Repair method | Professional repair | Module replacement |
WHY CHOOSE ALTRASONIC ?
1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore,
Taiwan, Malaysia, Germany, and other country still being
discussing.
2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new
applications in the field of ultrasound, and the importance of team
spirit of cooperation.
3. Half the price, double the value. Every product reach you have been test in our company three times,
and with 72 hours continous working, to confirm it is well before
you get it. Also we always learn from foreign company, to upgrade
our products.
4. Good components. Ceramic mainly imported from German, and using the superior
quality aluminum, titanium raw materials.
5. Individual Customize. We can customize products according to your requirements, Also
supply OEM service. Customize ultrasonic solution for different
applications.
