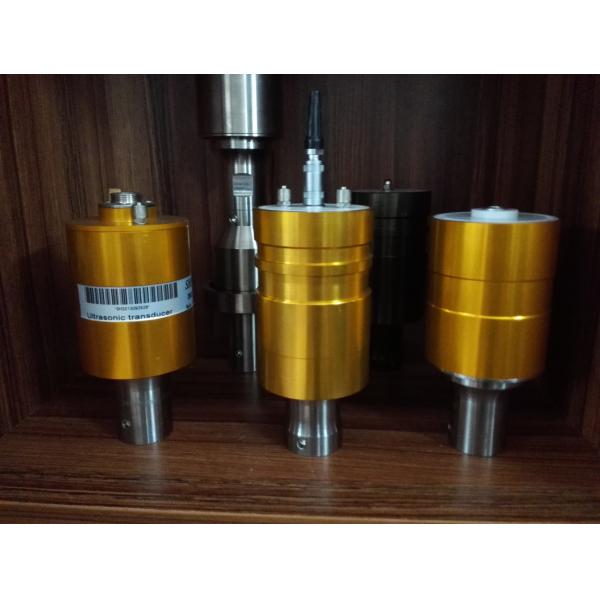

    Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Transducer

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HSB922J
    Certification : CE
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 200 units per month
    Delivery Time : 3 working days after received your payment
    • Product Details
    • Company Profile

    Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Transducer

    Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Transducer


    Minimum Order Quantity:

    2pcs

    Price:

    negotiation

    Payment Terms:

    T/T

    Supply Ability:

    200pcs per month

    Delivery Time:

    10 working days after received your payment

    Packaging Details:

    Packed in carton, and PE form inside


    Specifications:


    MODEL

    FREQUENCY(KHz)

    Ca(pf)

    Power(W)

    Machine

    402

    19.6-20.0

    7800-8500

    450-900

    BRANSON8400

    502/922JA

    19.6-20.0

    11500-12500

    2000

    BRANSON8800/5170

    CJ20

    19.4-19.7

    19000-21000

    1100-4000

    BRANSON2000 series

    CB35A15A

    36.5-37.5

    3300-4000

    800

    Rinco-35A15A

    CV231

    38.3-39.0

    3500-4500

    900

    40K Metal welding

    CV3510

    36.2-37.0

    3200-4000

    800

    Rinco-CV3510

    110-3122

    19.6~20.0

    12500-14000

    2600

    Dukane heavy duty


    Info on the 922JA and 502, which is the same driver. On the 922JA they use a board with capacitor and resistor under the cap. On the 502 there is no board.


    Description:


    1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
    2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
    3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in
    the highest level of power.
    4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.


    Applications:


    Our transducer can applied in the following ultrasonic machines:

    Ultrasonic welding machine

    All material with thermoplasticity can use Ultrasonic welding machine ,

    it can welding the material more easy and stable.Such like plastic, fabric,

    ABS, nonwovens.

    Ultrasonic cutting machine

    Ultrasonic food cutting is popular because the perfect edge.

    Ultrasonic cutting in packing area also welcomed, it can cutting

    and sealing at the same.

    Ultrasonic sewing machine

    Ultrasonic sewing can sewing the material without any cotton, and keep

    longer time.


    Competitive Advantage:


    Service: Timely feedback; Free design; 1 year Warranty.

    Quality: Full testing before shipping; we reputation from customer.
